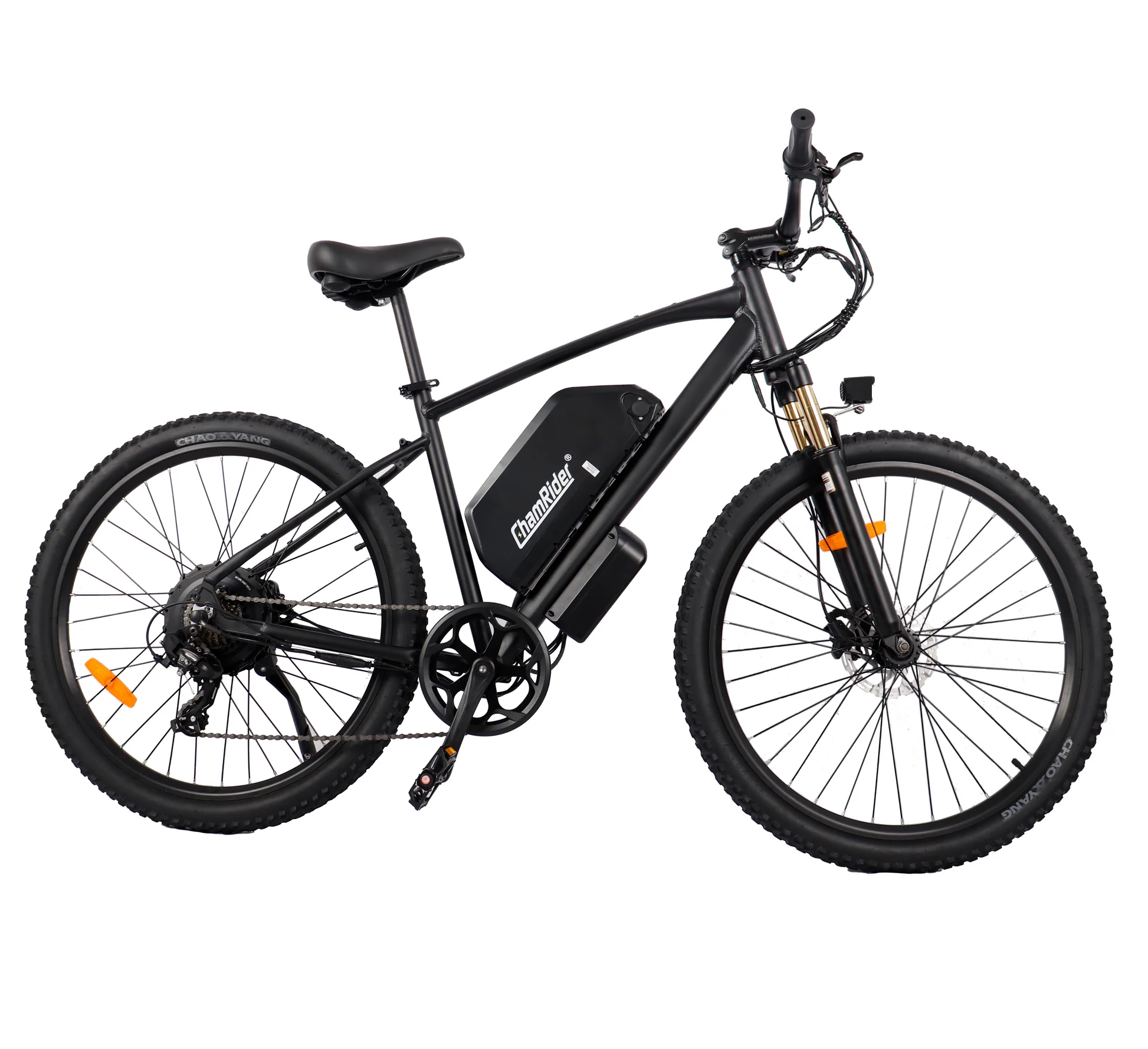

ChamRider DM427 E-bike
Product details
Specification
Tyre size- 27.5" Frame material- Thickened aluminum alloy frame
Voltage- 48V

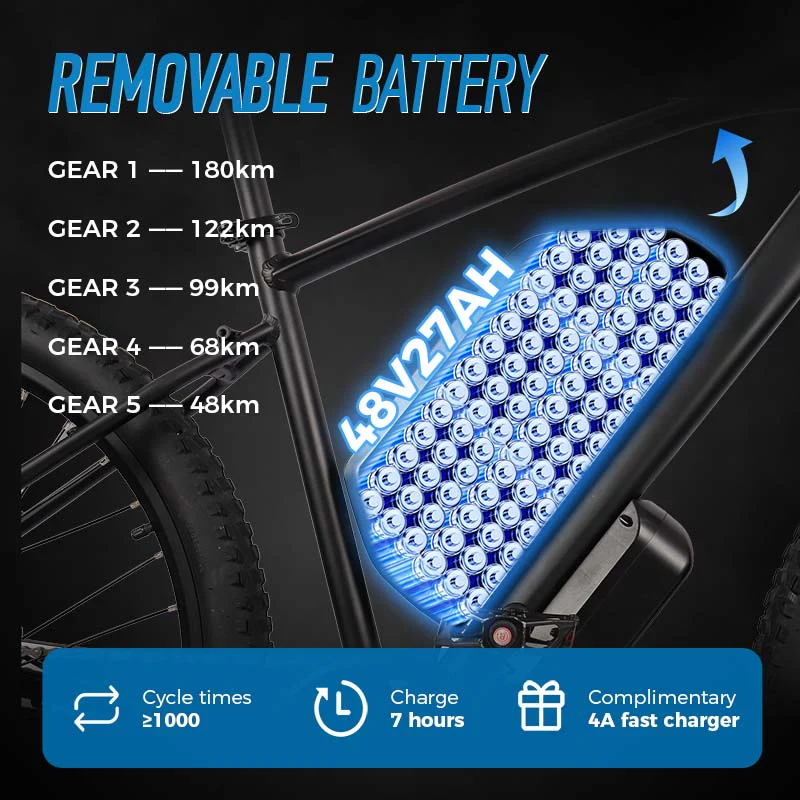

Batteries - DC-48V 27AH

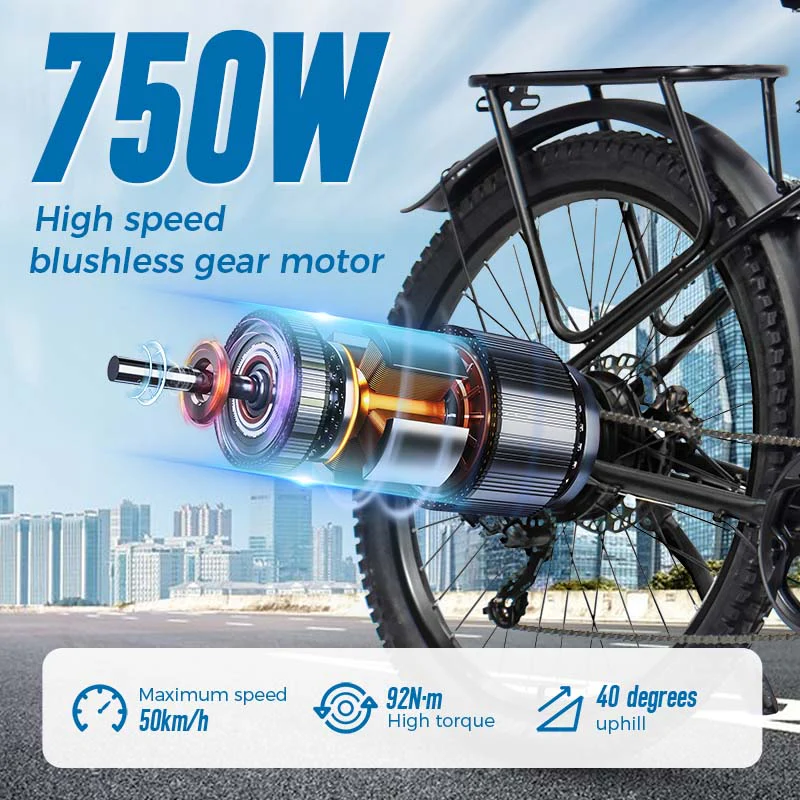

Motor- 48V 7500W rear motor
Controller- 48V 25controller
Charger- 48V 4A fast charger
Tires- chaoyang 27.5*2.35

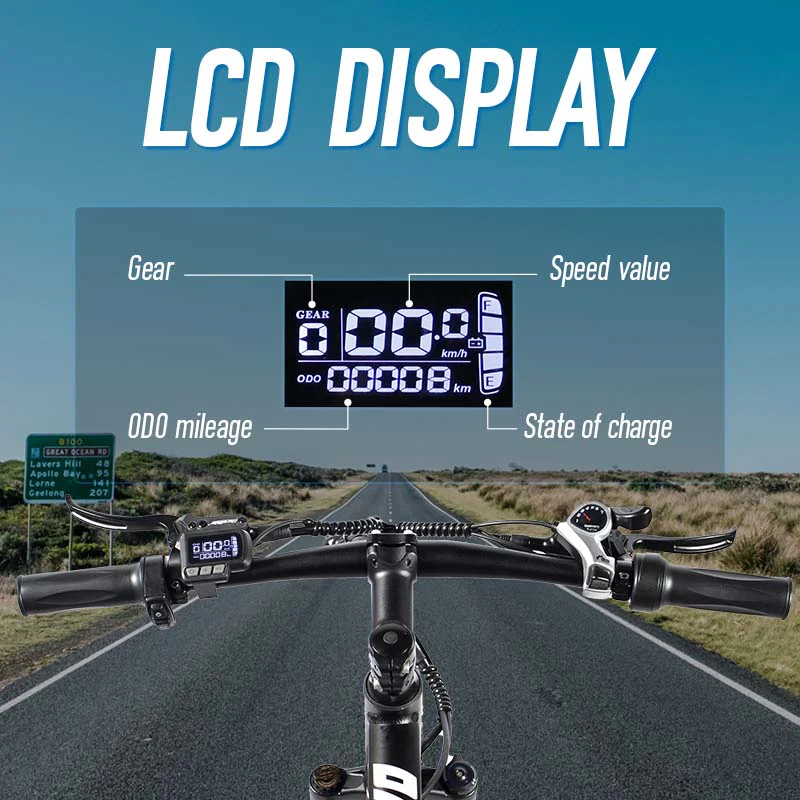

Display- 48V central LCD black and white screen instrument panel, MPH speed and battery display, cruise control, 1-5 gears
Lights- Headlights, headlights with horns
Derailleur- 7-stage variable speed
flywheel - Shimano Level 7 positioning
Brake- Hydraulic brake system (with power off function)
Front fork- Aluminum shoulder, iron leg, locked front fork
Handlebar- Aluminium alloy handlebars Handlebar stem- Aluminium alloy riser
Seat Tube- Aluminium alloy seat tube
Max speed- 50KMH
Middle axle- One waterproof central shaft
Crankset- Xiangrui aluminum alloy tooth tray 46T single cover
Parking stand- All aluminum adjustable
Front seat bag- Widened and thickened with cushioned comfort

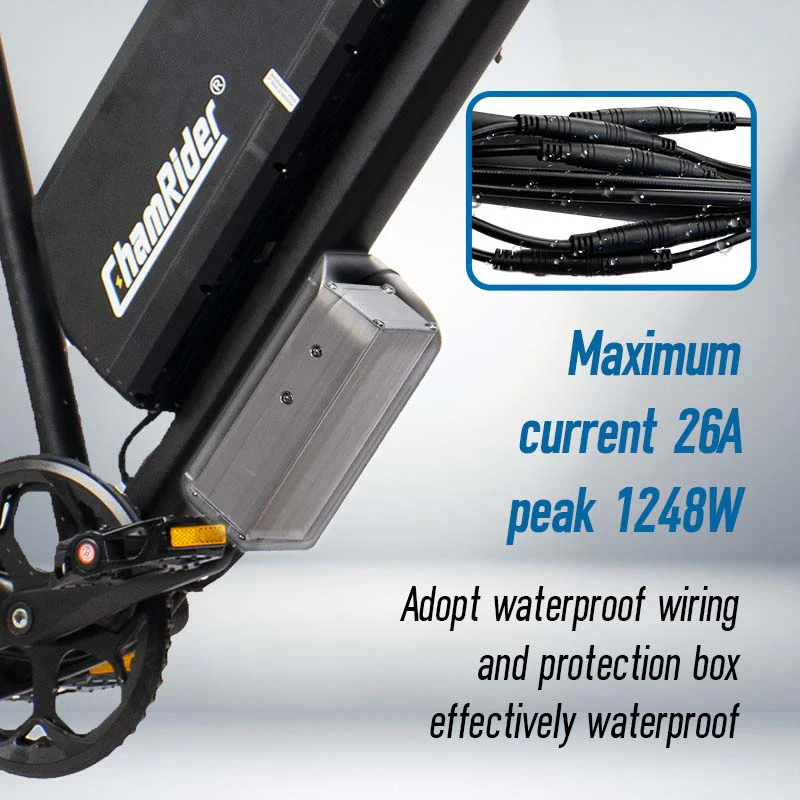

Wiring harness- Waterproof wire
Range- 60-90KM (Electric)
100-2000km (PAS)
Max load- 180KG
Net weight- About 35KG
Packing size- 1600*300*90（mm）
Size and Fit
A. Distance from Seat to Handlebar: 78 cm (2.56 ft)
B. Overall Length: 180 cm (5.91 ft)
C. Tire Height: 70 cm (2.30 ft)
D. Overall Height: 108 cm (3.54 ft)
E. Maximum Seat Height: 85 cm (2.79 ft)
F. Minimum Seat Height: 50 cm (1.64 ft)
G. Standover Height (Top Tube Clearance): 80 cm (2.62 ft)
H. Handlebar Width: 65 cm (2.13 ft)
Net Weight: 27 kg (59.5 lbs)
Max Load Capacity: 180 kg (396.8 lbs)
