Specification
| Differences |
Mechanical Version & Hydraulic Version |

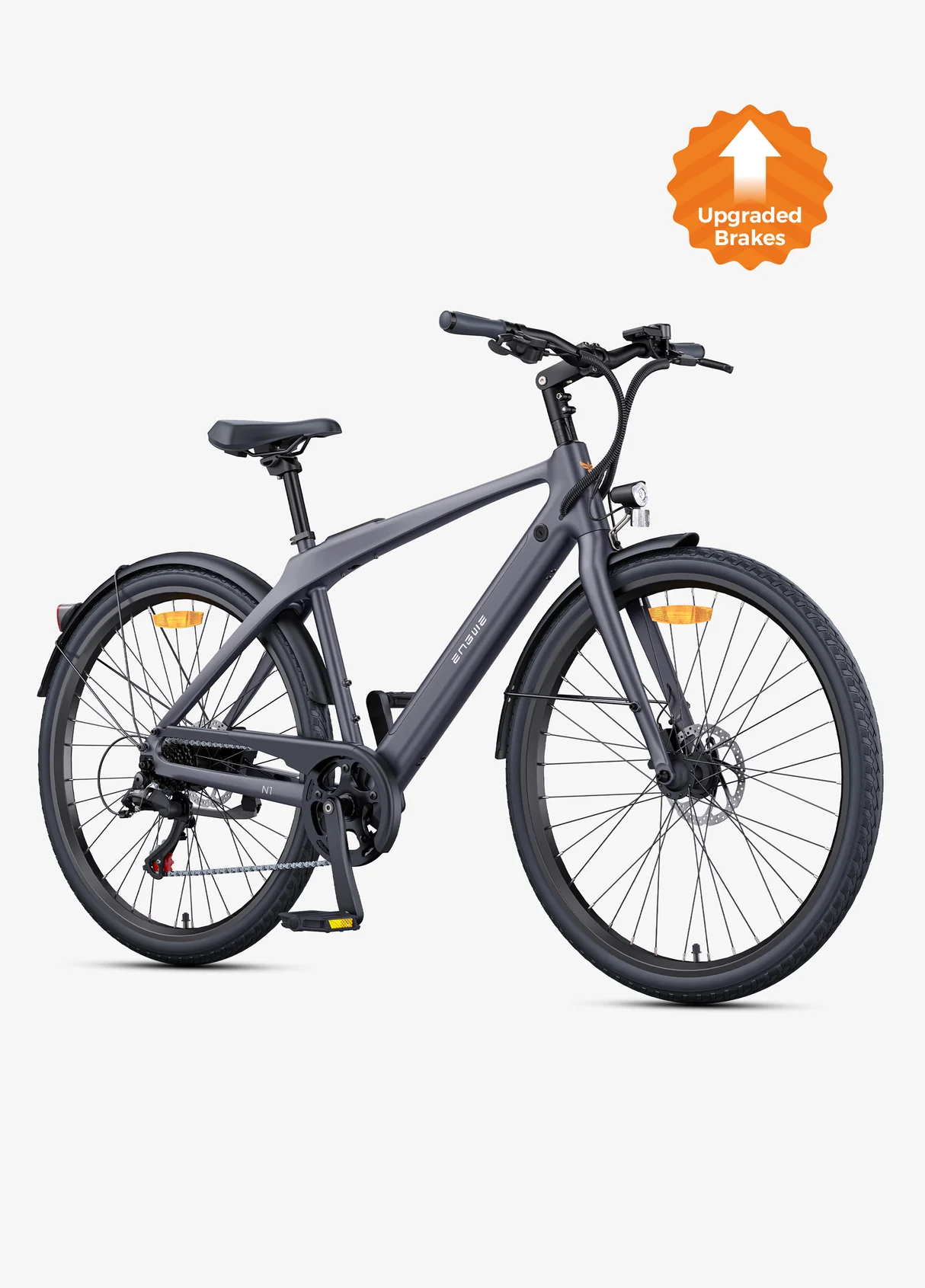

| Brakes |
Mechanical Version:160mm Front & Rear Mechanical Disc Brakes
Hydraulic Version:160mm Front & Rear Hydraulic Disc Brakes |

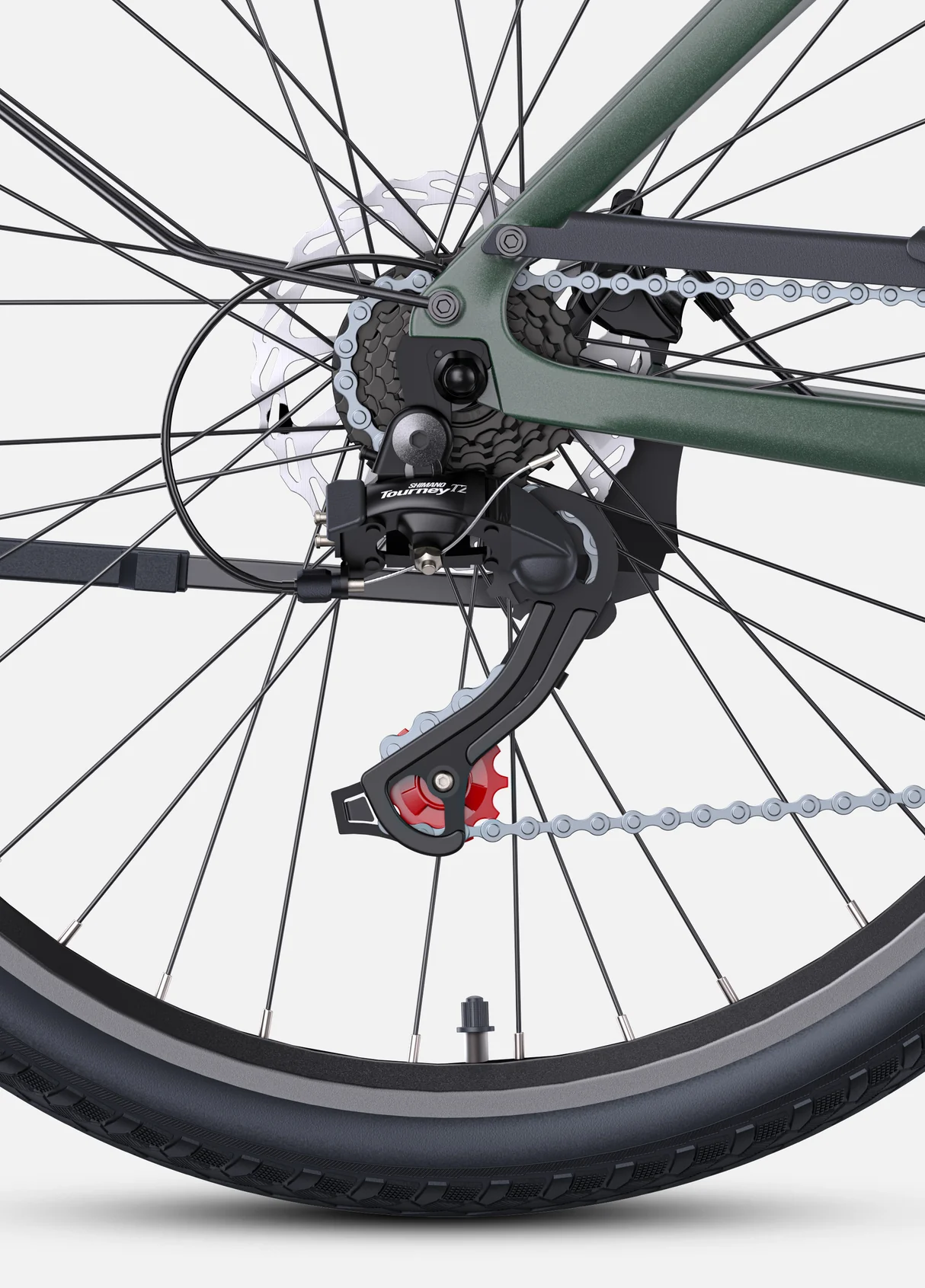

| Transmission System |
Mechanical Version:SHIMANO 7-Speed with SHIMANO SL-TX50-7R
Hydraulic Version:SHIMANO 7-Speed with SHIMANO SL-M315-7R |
| Fender |
Mechanical Version:Steel
Hydraulic Version:Plastic |
| Similarities |
Mechanical Version & Hydraulic Version |
| Bike Weight |
15.6 kg (34.39 lbs) |
| Gross Weight |
25.4 kg (55.99 lbs) |
| Material |
Carbon Fiber Frame
Aluminium Fork |
| Motor |
MIVICE M070 Rear Hub Motor |
| Sensor |
Torque Sensor |
| Max Torque |
40 Nm |
| Tires |
700*38C Spoke Tires |
| Lights |
Front light & Solar Tail Light |
| Battery |
36V 10Ah SAMSUNG Removable Lithium-ion Battery |
| Speed |
25 km/h |
| Mileage |
100 km (PAS 1 level) |
| Charging Time |
About 5-8H (The charging time of the battery depends on the usage of the battery.) |
| Maximum Climbing degree |
10° |
| Display |
LCD Color Display |
Please note: All stated weight numbers have a +/- 3%-5% tolerance. Bike weight includes the battery but excludes all accessories.
Size and Fit
Unfolded
| Rider Height |
5.25ft)-6.4(ft) |
| Payload Capacity |
120KG (264.5lbs) |
| Package Dimensions (LWH) |
148.4*22.5*73CM |
| A--Wheelbase |
110.5 cm |
| B--Total Length |
181 cm |
| C --Reach |
44 cm |
| D--Standover Height |
75.5 cm |
| E--Min Saddle Height |
82.5 cm |
| F--Max Saddle Height |
95 cm |
| G--Min Handlebar Height |
105 cm |
| H--Max Handlebar Height |
112 cm |
Please note: There may be a difference of 0~5 CM between measured and actual data.
