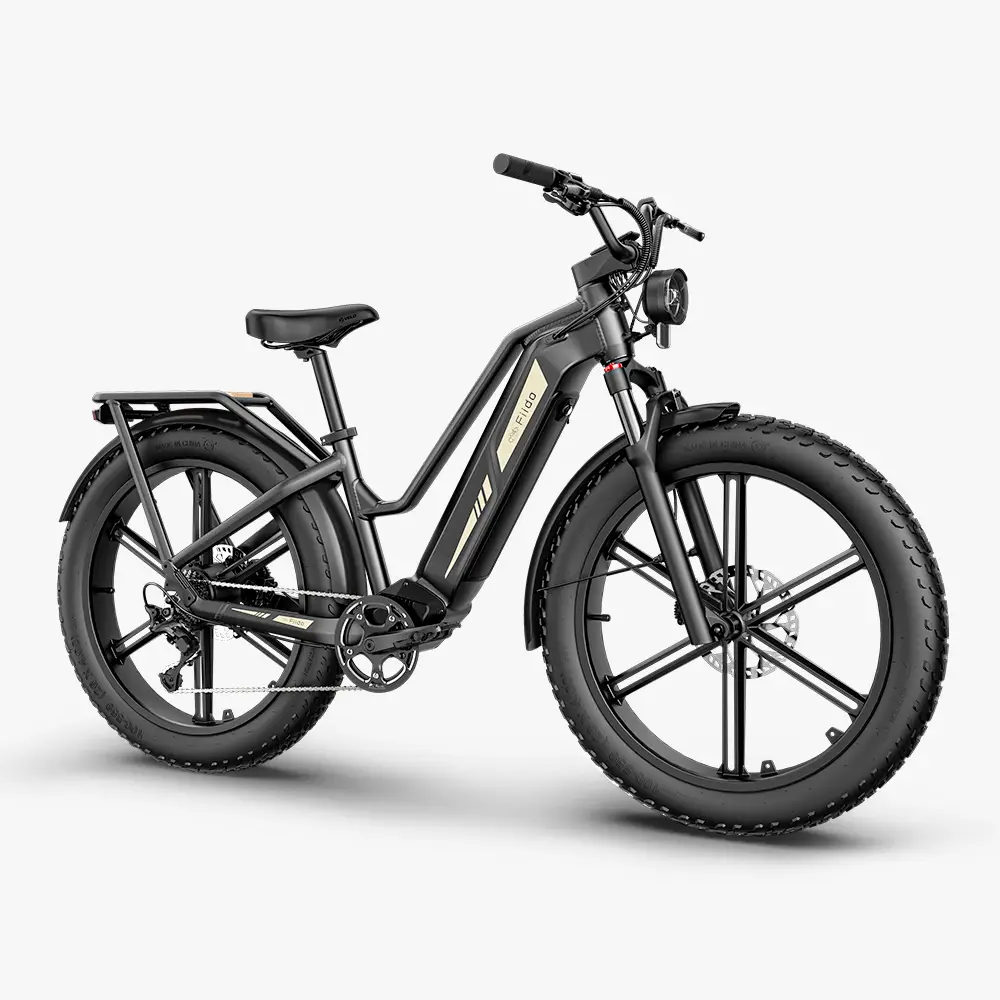

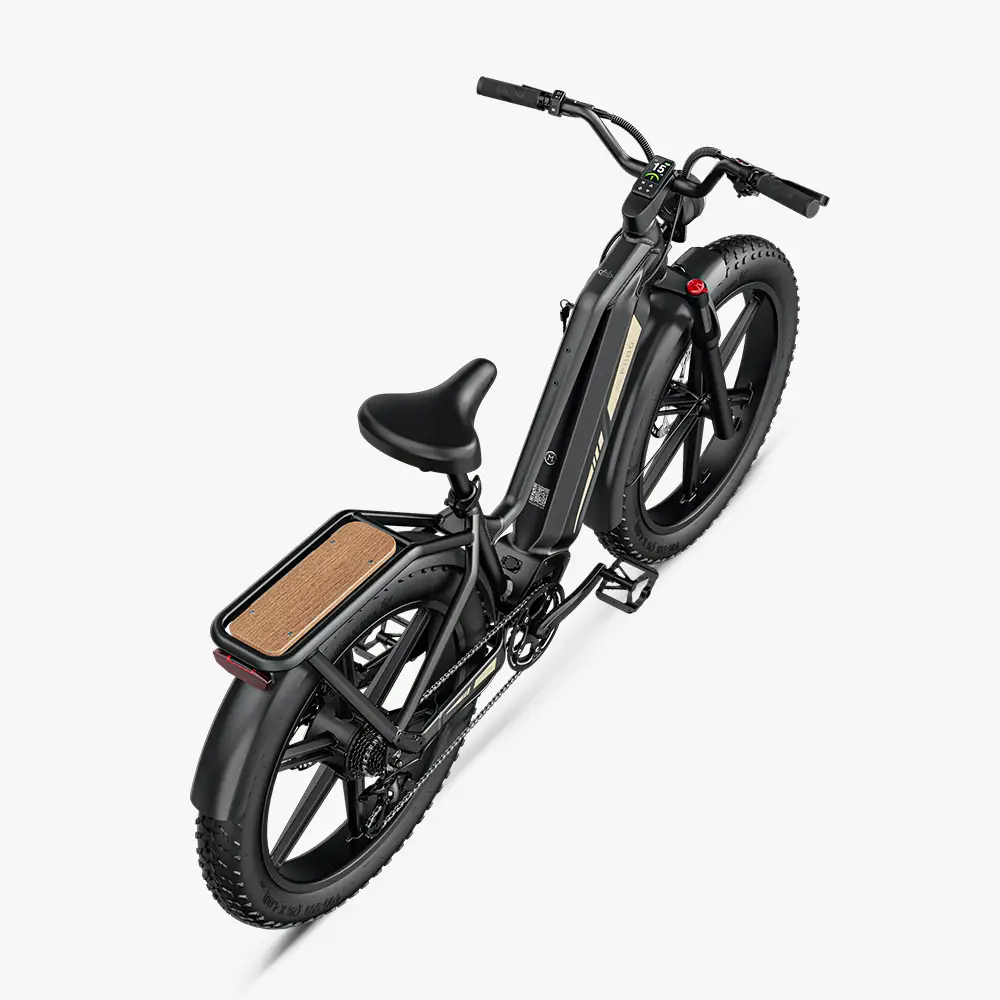

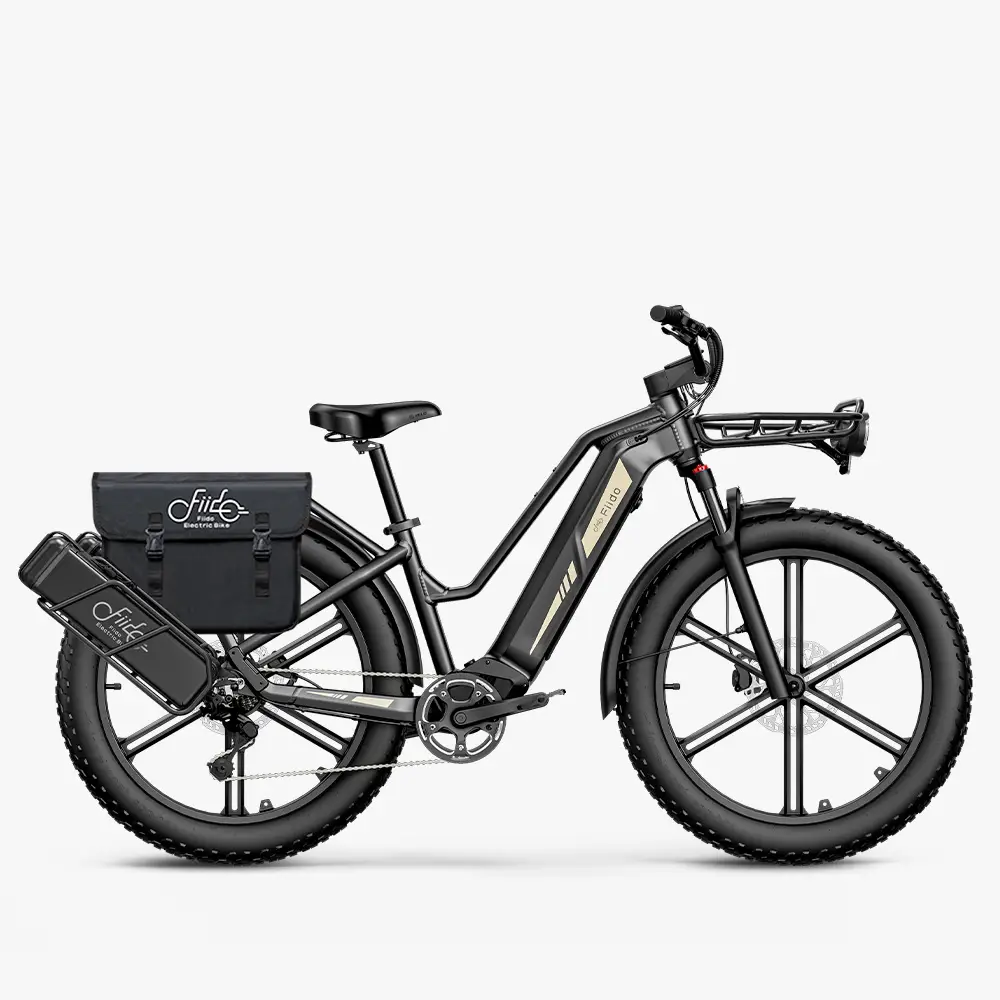

Fiido Titan
€1,699.00
30 people are viewing this right now
Guaranteed safe & secure checkout
Product details
Specification
Size and Fit
About the brand
Reviews
Questions
Product details
The Titan is built for real adventure and outdoor exploration. Fishing, hunting, camping, beach cruising, cross-city trips… Wherever life takes you, the Titan delivers true power and strength by your side.
Specification
| TITAN (M25) Specifications | |
|---|---|
| Model Name | TITAN |
| Model Code | M25 |
| Net Weight | 37.8 kg |
| Payload | 200 kg (Saddle: 120 kg + Rear rack: 80 kg) |
| FRAMESET | |
| Frame | 26-inch aluminum alloy frame |
| Fork | Aluminum alloy hydraulic shock-absorbing front fork (60mm travel, 135mm width) |
| Headset | Aluminum alloy bearing headset |
| E-SYSTEM | |
| Drive Unit | 250W 55Nm Brushless Toothed High-speed Motor |

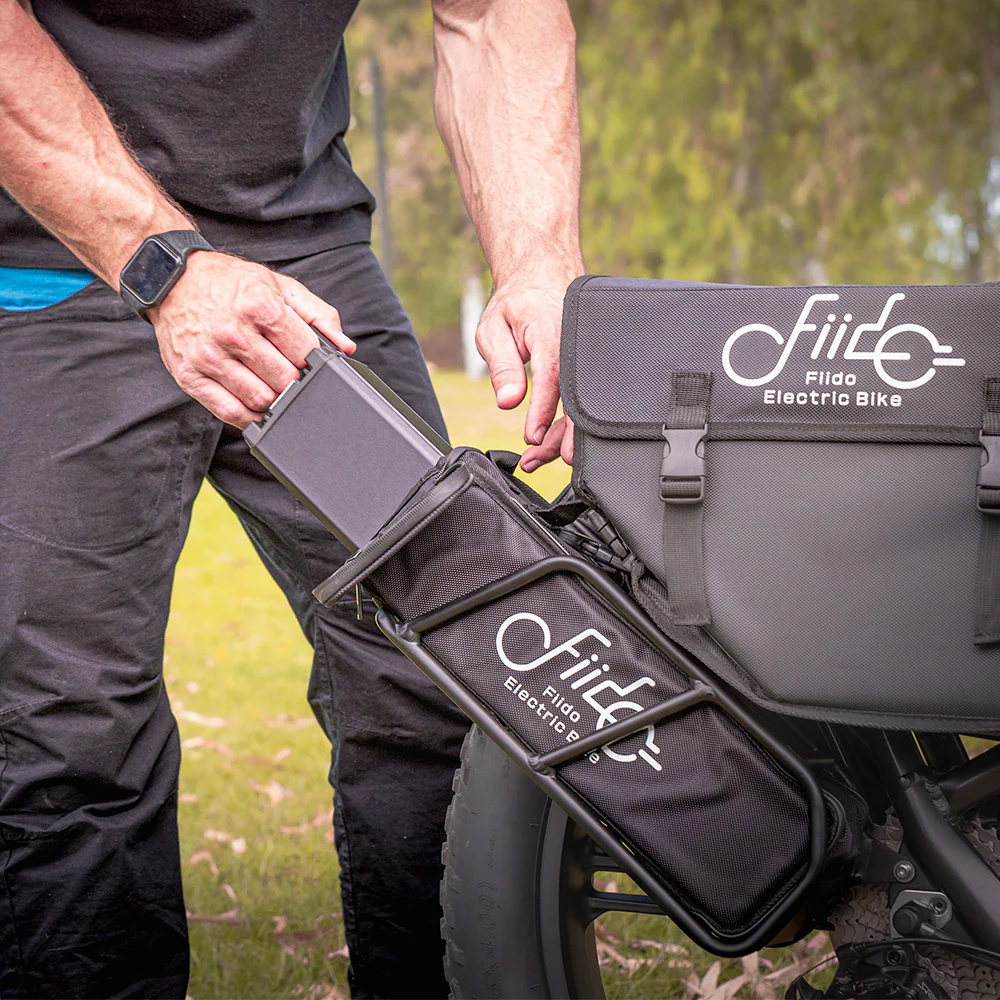

| Battery | DMEGC 696Wh |
| Charger | 48V 3A |

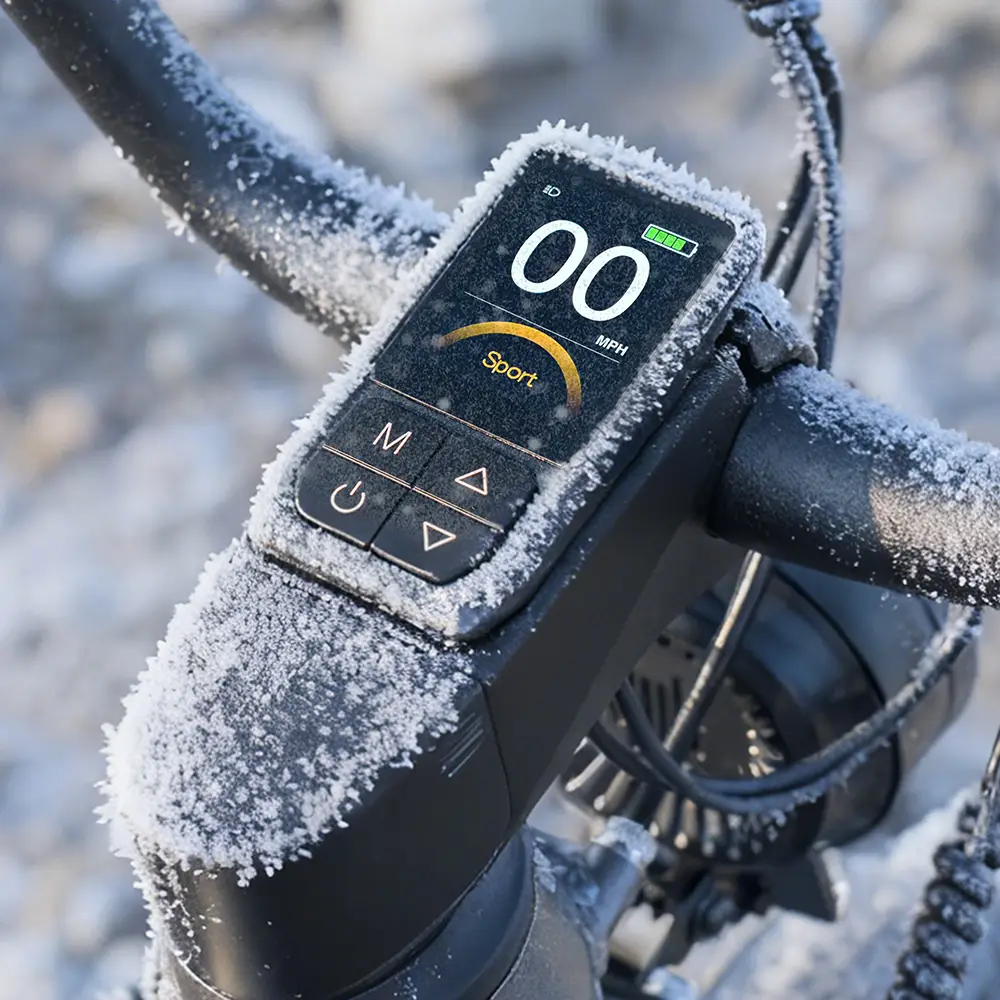

| Display | LCD 2.4 inch |
| Throttle | Yes (max speed 6 km/h) |
| DRIVETRAIN | |
| Rear Derailleur | DSL-D310 9-Speed |
| Shifters | RD-D310 9-Speed Index Shifter |
| Chain | KMC X9 9-Speed Chain |
| Crank | Aluminum alloy 42T |
| Rear Cogs | CS-M300 11-36T 9-Speed Cassette |
| Sensor | Torque Sensor Mivice S200 |
| BRAKES | |
| Brakes | Four-piston hydraulic disc brake with power cut-off |
| Brake Levers | Aluminum alloy three-finger brake lever |
| WHEELS | |
| Front Hub | Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm) |
| Rims | / |
| Spokes | / |
| Tires | CST 26*4.0 |
| COMPONENTS | |
| Handlebar | Aluminum alloy (Length: 680mm, Max diameter: 25.4mm, Min diameter: 22.2mm) |
| Stem | Aluminum alloy stem |
| Grips | TPR non-slip handle grip (Length: about 130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Aluminum alloy clamp head seatpost (Length: 400mm; Diameter: 33.9mm) |
Size and Fit
All measurements provided in mm unless otherwise noted.
| Rider heights | 5'1" (155cm) - 6'7" (200cm) |
| Wheel size | CST 26*4.0 |
| A-Seat tube | 420 |
| B-Seat tube angle | 72.5° |
| C-Head tube | 135 |
| D-Head angle | 70° |
| E-Top tubelength | 627.5 |
| F-Standover height | 718 |
| G-BB drop | 65 |
| H-Rear Center | 470 |
| I-Wheelbase | 1150.3 |
| J-Reach | 420 |
| K-Stack | 658 |
| L-Maximum seat height | 1040 |
| M-Minimum seat height | 810 |
| N-Rear rack height | 790 |
| O-Totallength | 1850 |
| P-Handlebar height | 1070 |
| Q-Handlebar length | 710 |
| R-Rear rack length | 400 |
| S-Rear rack outer diameter length | 360 |
| T-Rear rack width | 165 |
| U—Basket Mount Hole Spacing A | 36 |
| V—Basket Mount Hole Spacing B | 60 |
