Product details

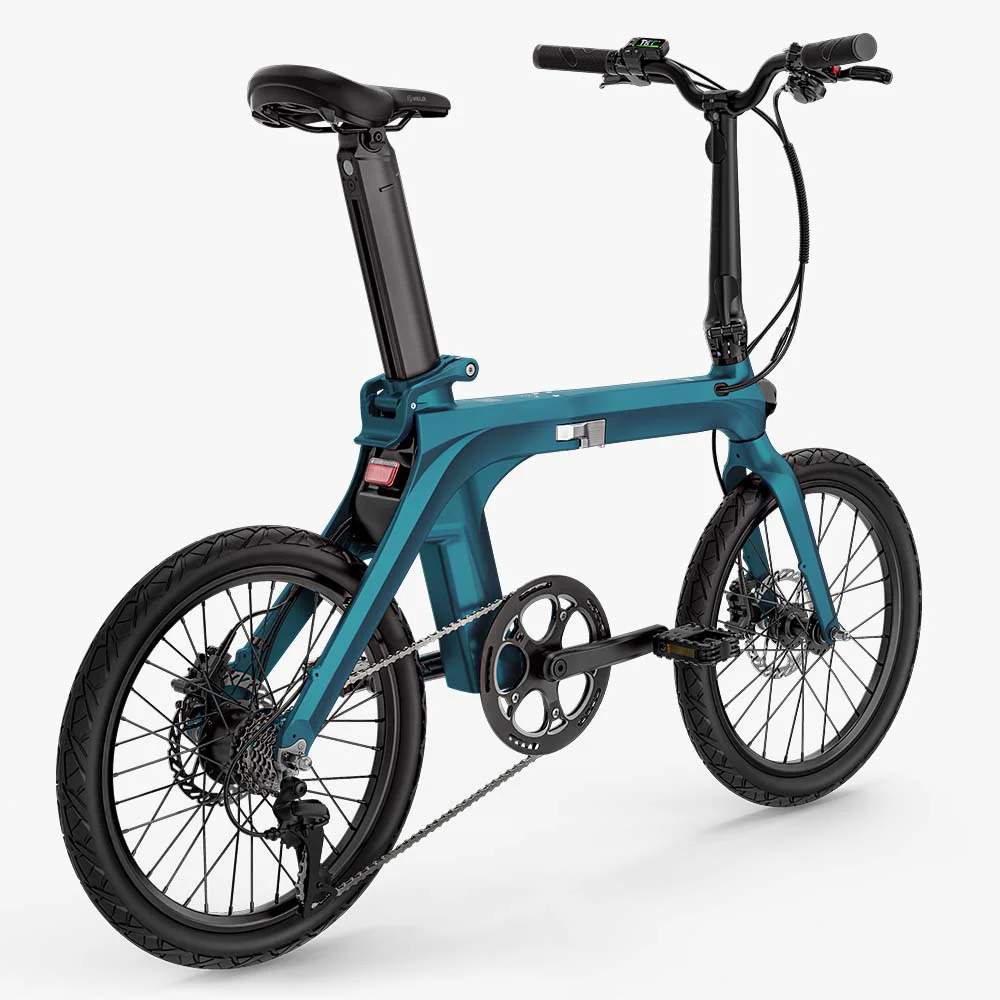

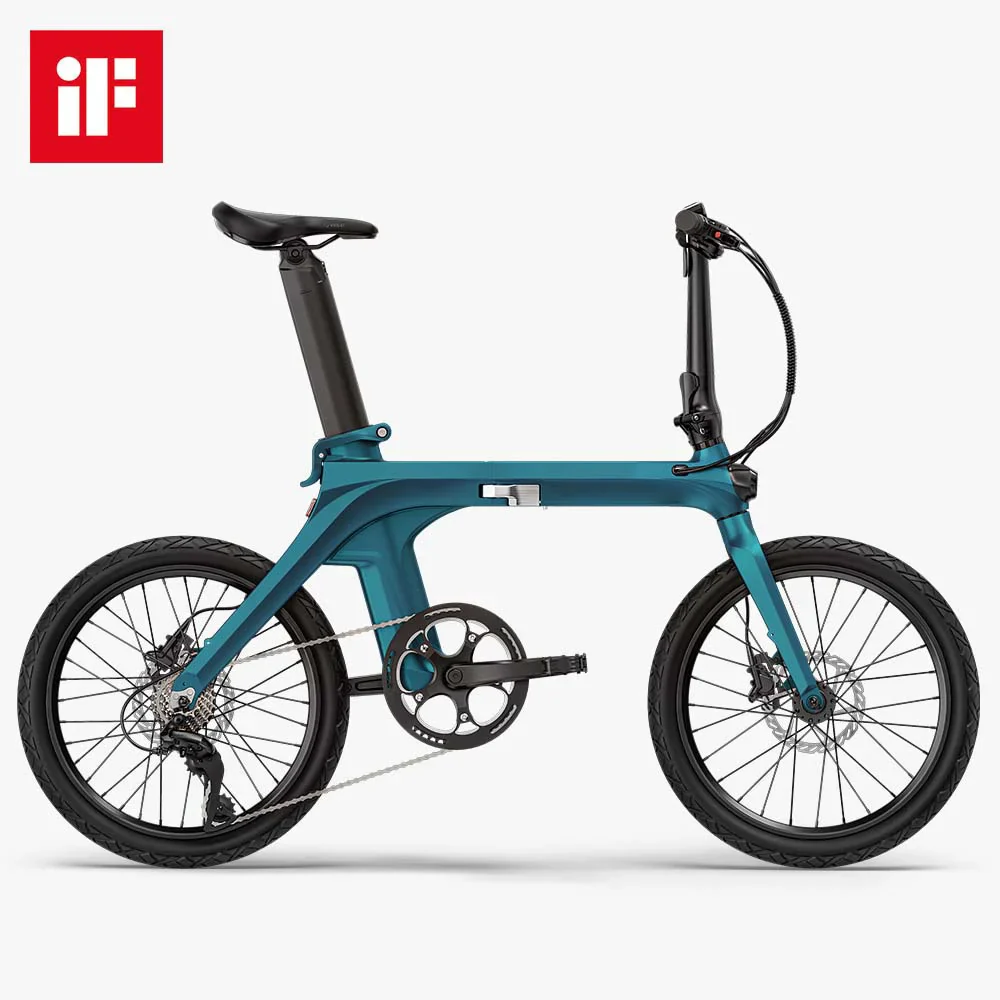

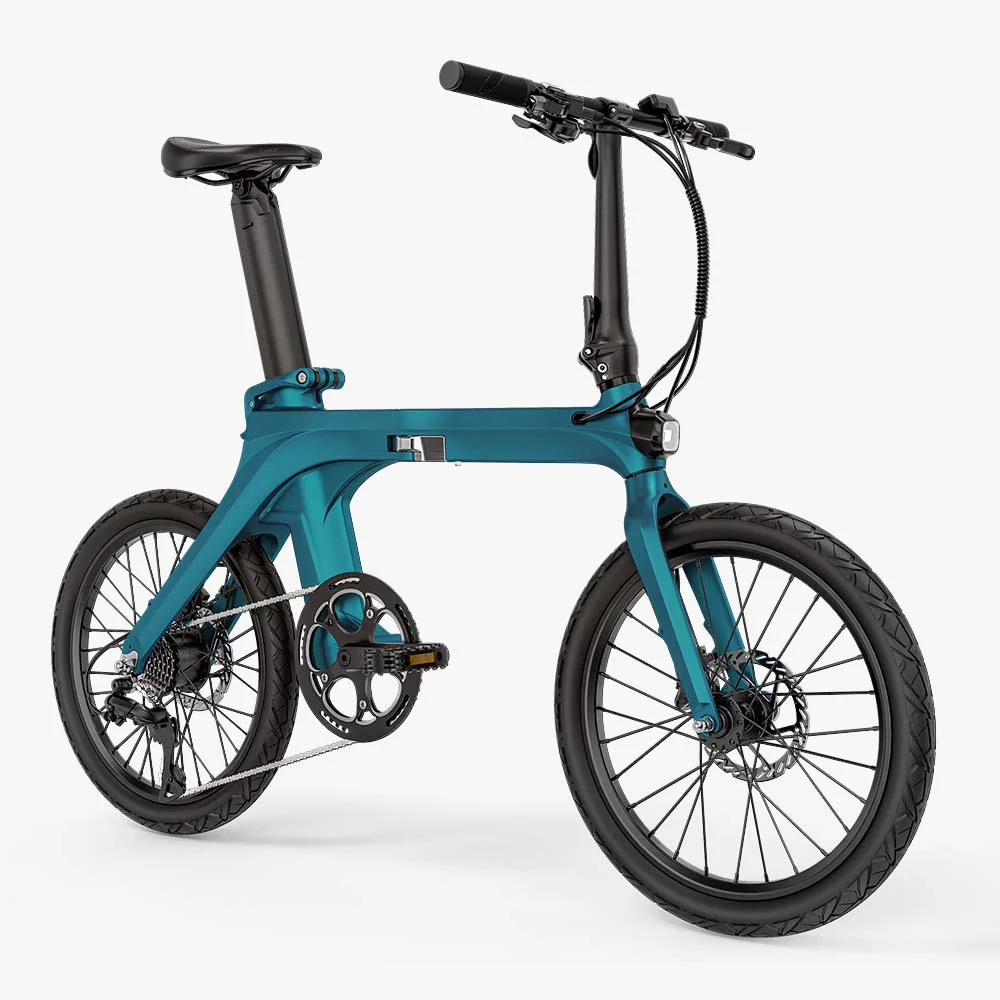

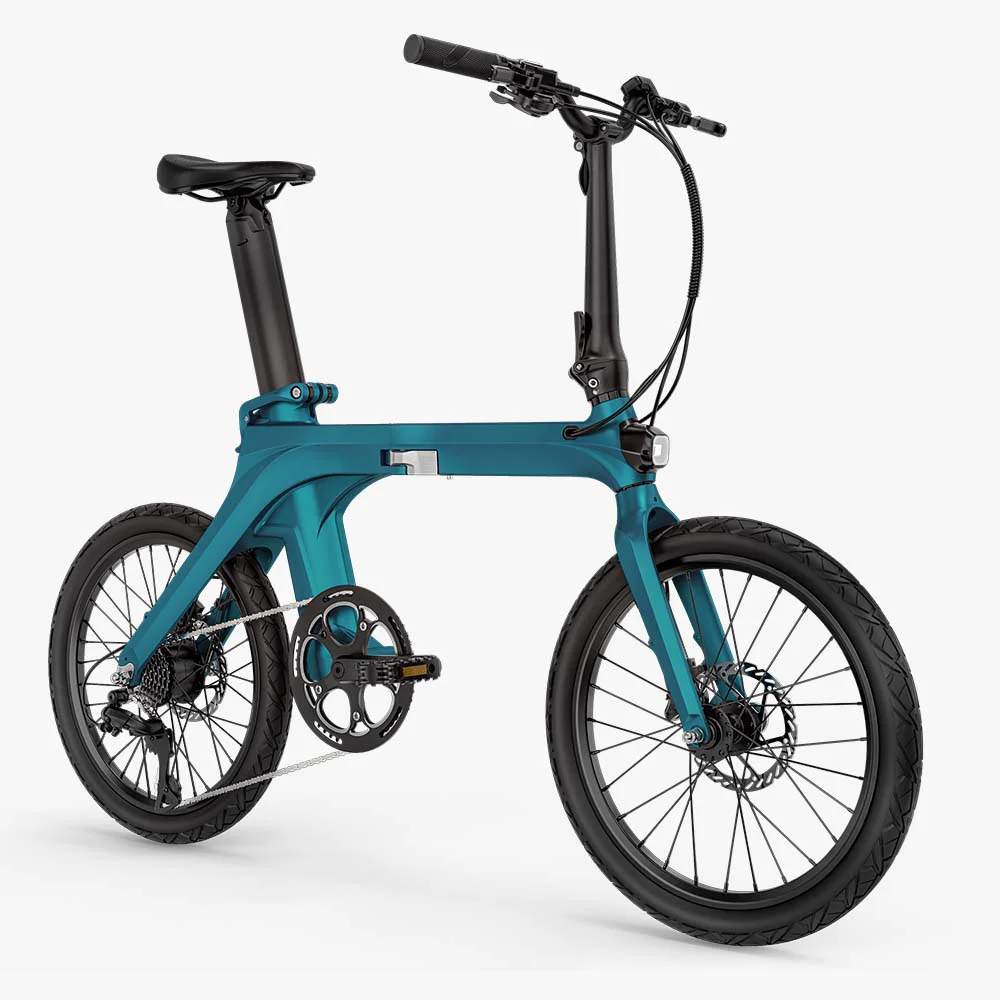

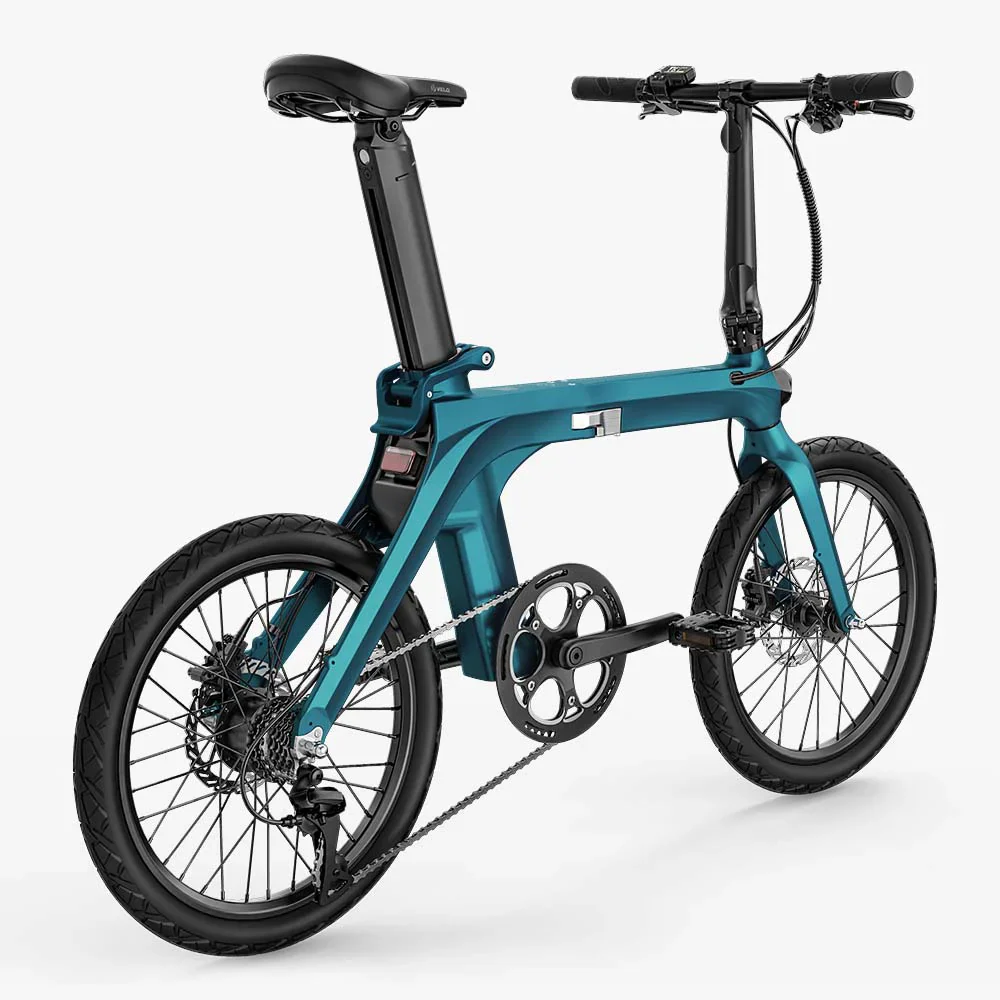

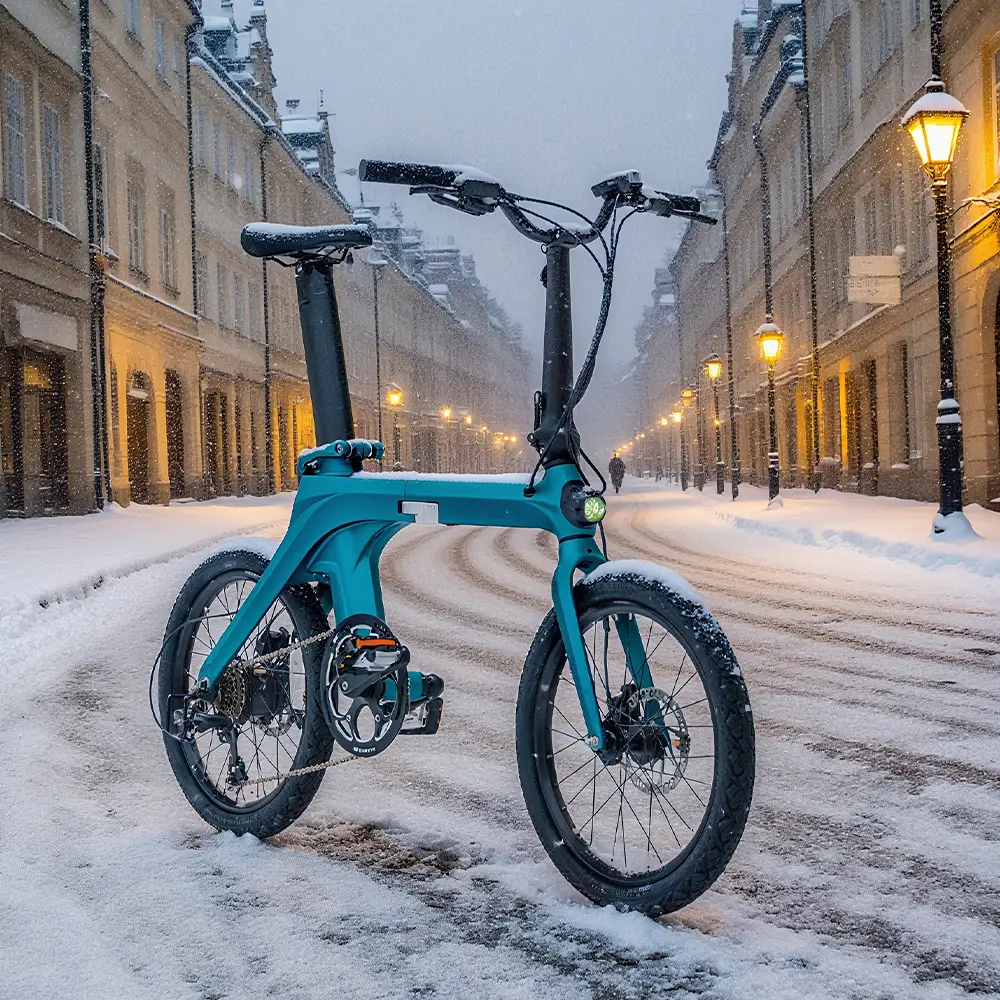

Fiido X Folding Electric Bike With Torque Sensor
Specification

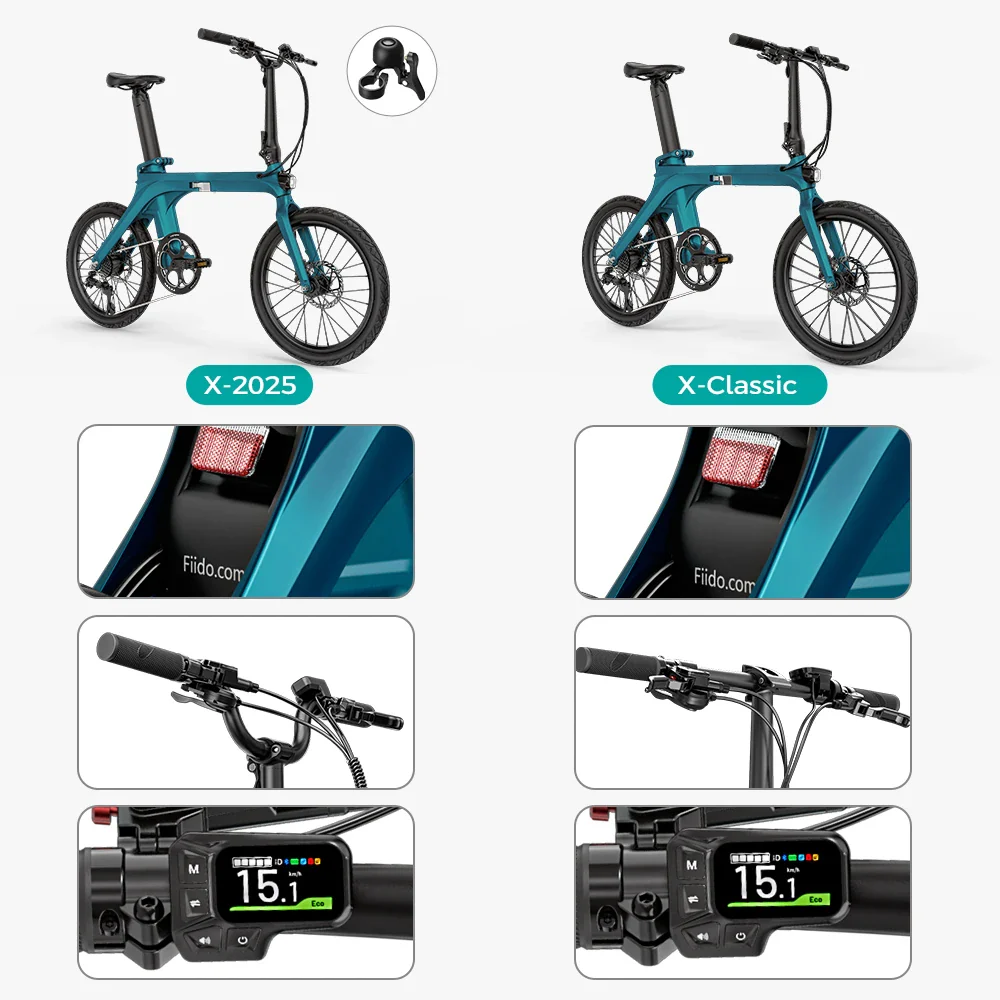

| X 2025 / X (D31) Specifications | |
|---|---|
| Model Name | X 2025(32Nm) / X(32Nm) |
| Model Code | D31 |
| Net Weight | 19.8 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 20-inch magnesium alloy integrated double-hinge folding frame |
| Fork | Magnesium alloy fork with 100mm opening width |
| Headset | Aluminum alloy bearing limit bowl set |
| E-SYSTEM | |
| Drive Unit | 32Nm |
| Battery | DMEGC 417.6Wh |
| Charger | 36V 2A |

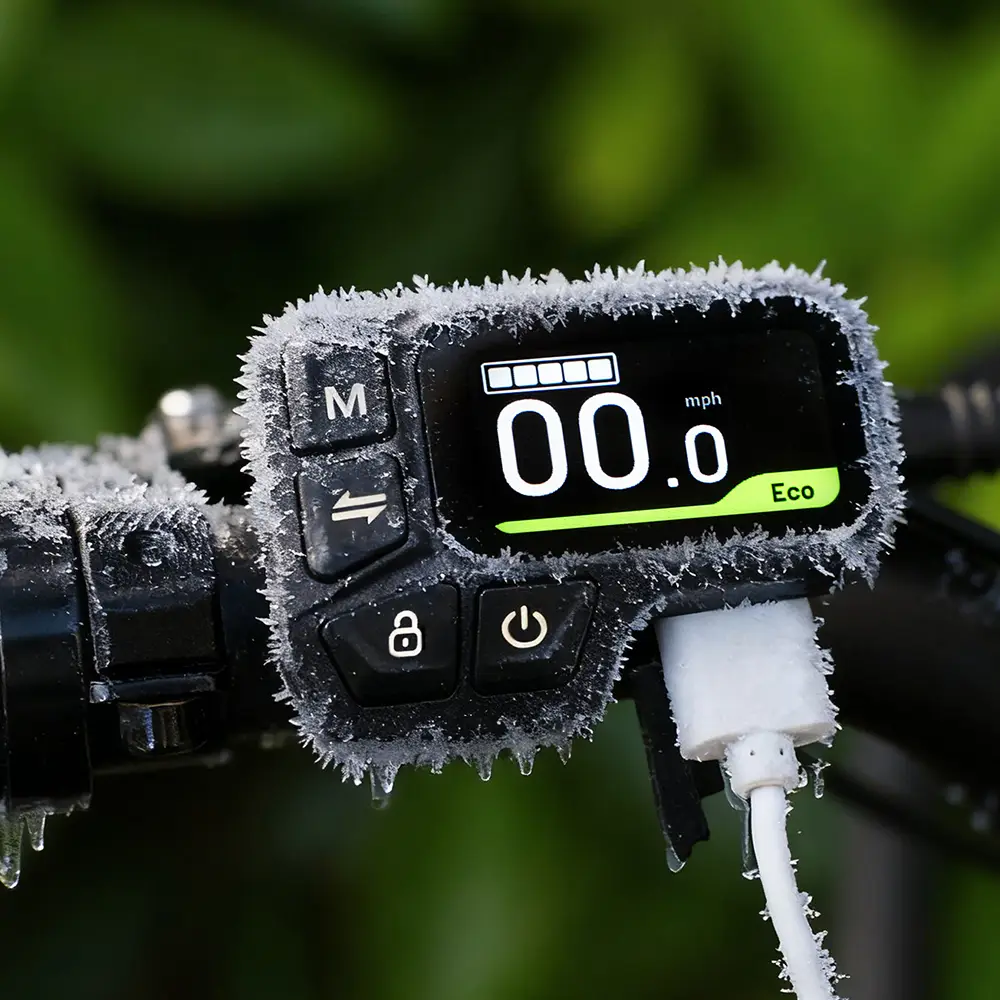

| Display | LCD 1.47 inch |
| DRIVETRAIN | |
| Rear Derailleur | SHIMANO TY300D |
| Shifters | SHIMANO M315 |
| Chain | KMC Z7 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | 7-speed (11-28T) |
| Sensor | Torque Sensor Mivice S200 |
| BRAKES | |
| Brakes | TEKTRO HM-M275 Hydraulic Disc Brake |
| Brake Levers | TEKTRO HM-M275 |
| WHEELS | |
| Front Hub | Aluminum alloy double bearing hub |
| Rims | Aluminum alloy double-layer rim |
| Spokes | Stainless steel spokes with brass nipples |
| Tire Size | 20*1.95 inches |
| Tires | CST 20*1.95 |
| COMPONENTS | |
| Handlebar | Aluminum alloy (Length: 560mm, Max diameter: 25.4mm, Min diameter: 22.2mm) |
| Stem | Aluminum alloy stem |
| Grips | TPR non-slip handle grip (Length: about 130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Aluminum alloy battery seat tube |
Size and Fit
All measurements provided in mm unless otherwise noted.
| Rider heights | 5'1" (155cm) - 6'5" (195cm) |
| Wheel size | CST 20*1.95 |
| A-Seat tube | 410 |
| B-Seat tube angle | 74.5° |
| C-Head tube | 100 |
| D-Head angle | 72° |
| E-Top tube length | 556 |
| F-Standover height | 628 |
| G-BB drop | -40 |
| H-Rear Center | 425 |
| I-Wheelbase | 975 |
| J-Reach | 395 |
| K-Stack | 357 |
| L-Maximum seat height | 1150 |
| M-Minimum seat height | 810 |
| N-Total length | 1490 |
| O-Handlebar height | X 2025(1080) / X(1020) |
| P-Handlebar length | 580 |

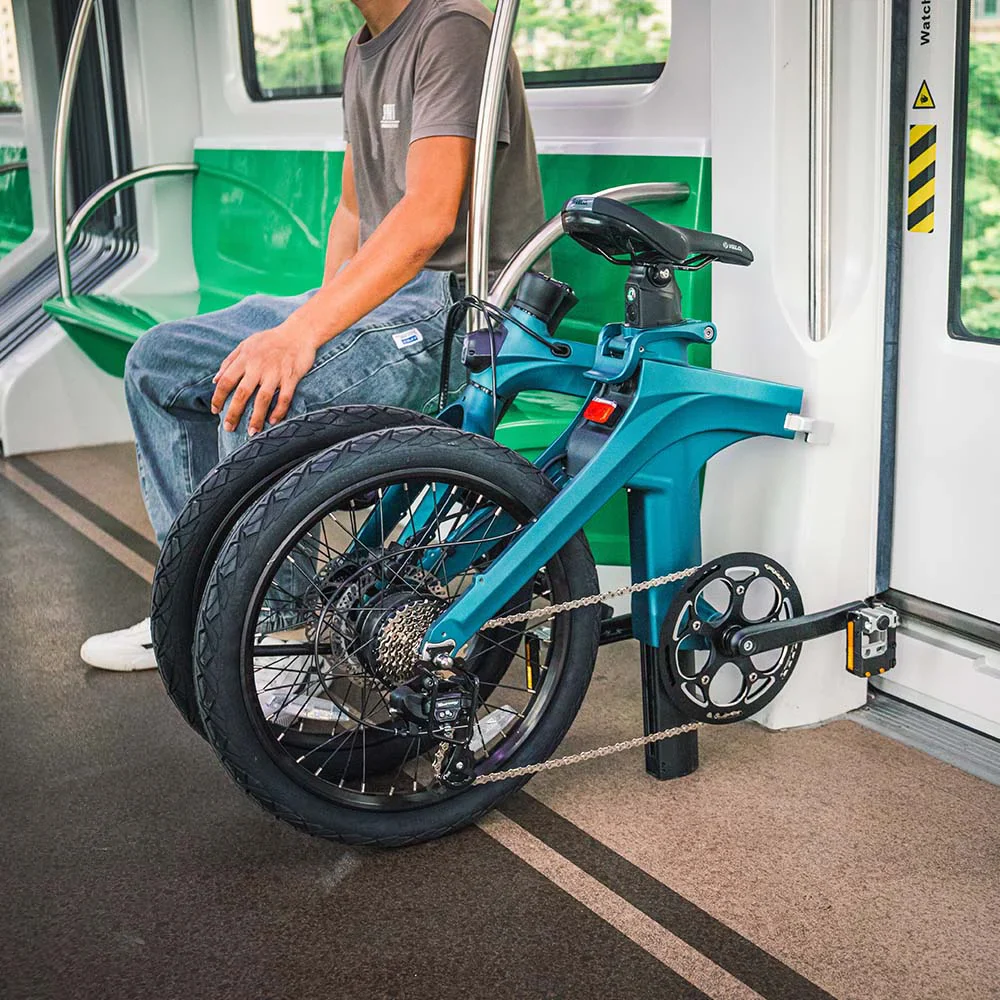

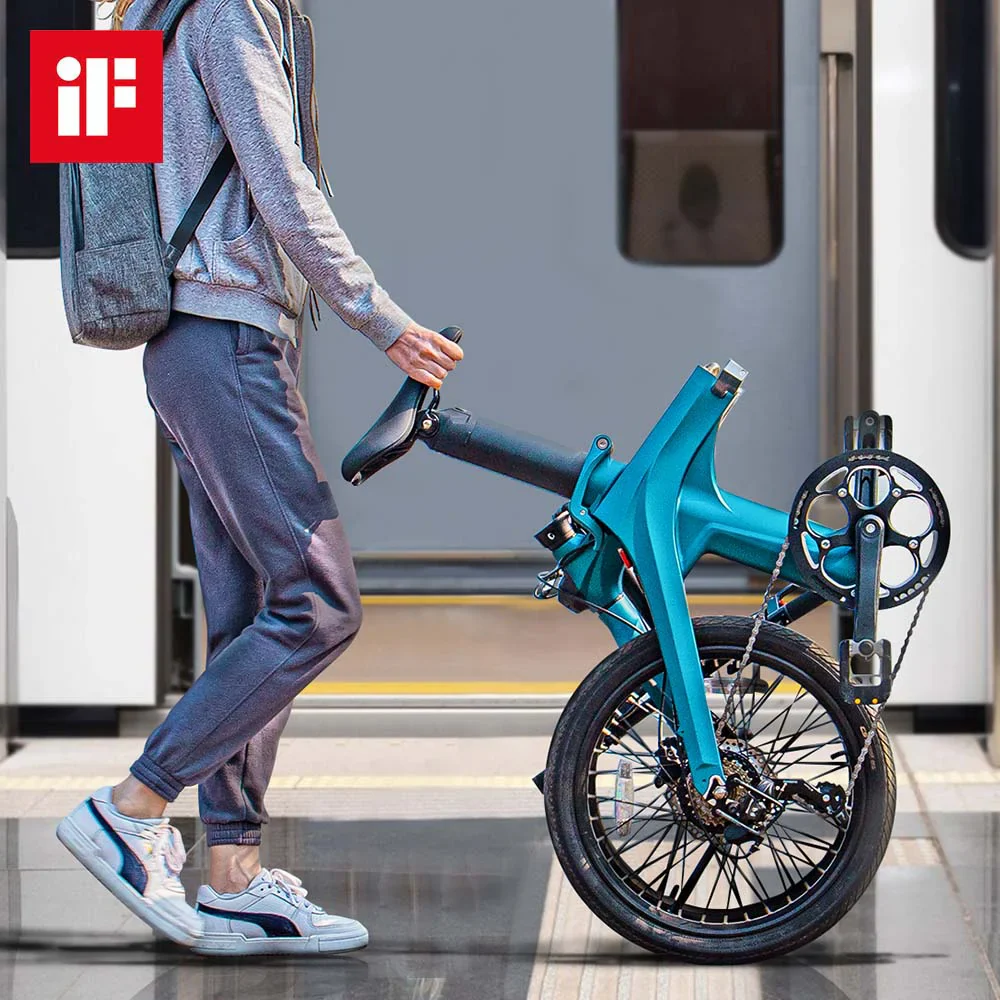

| Q-Folding length | 870 |
| R-Folding height | 740 |
| S-Folding width | 400 |
