PVY Z20 PLUS
Product details

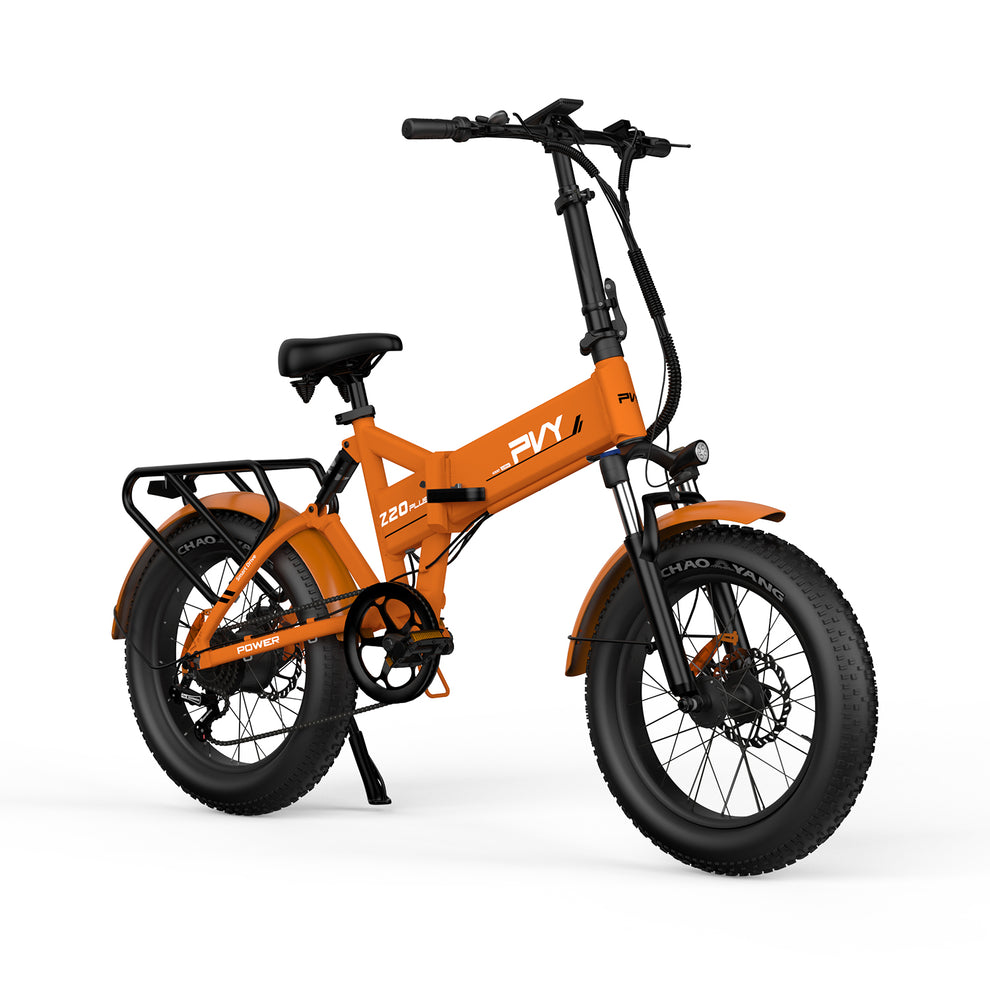

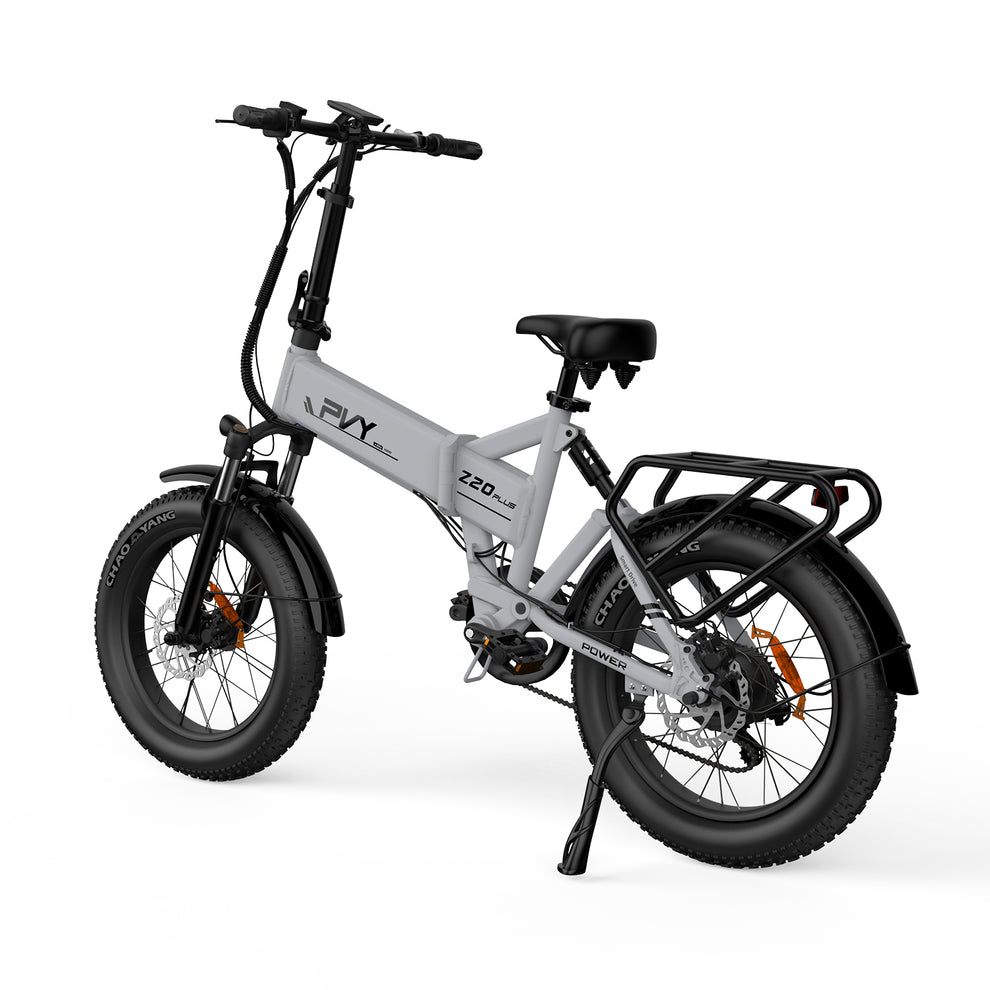

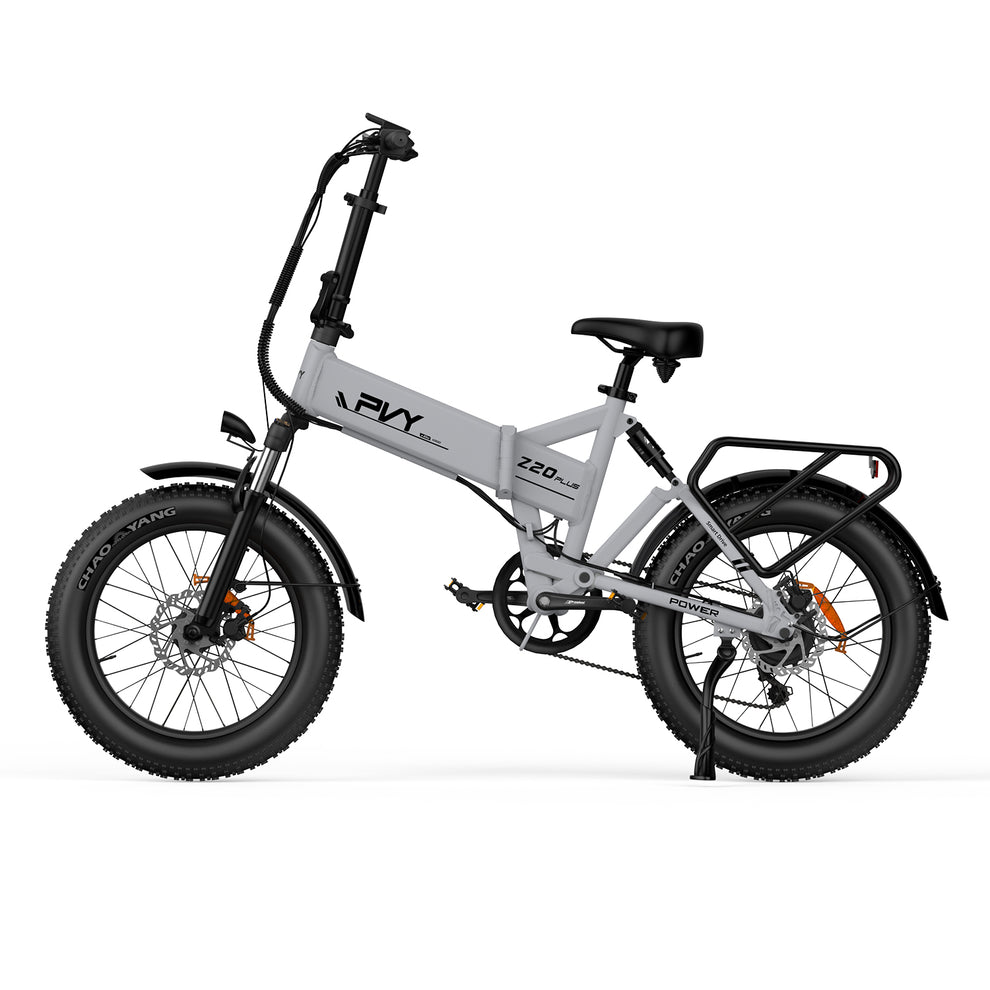

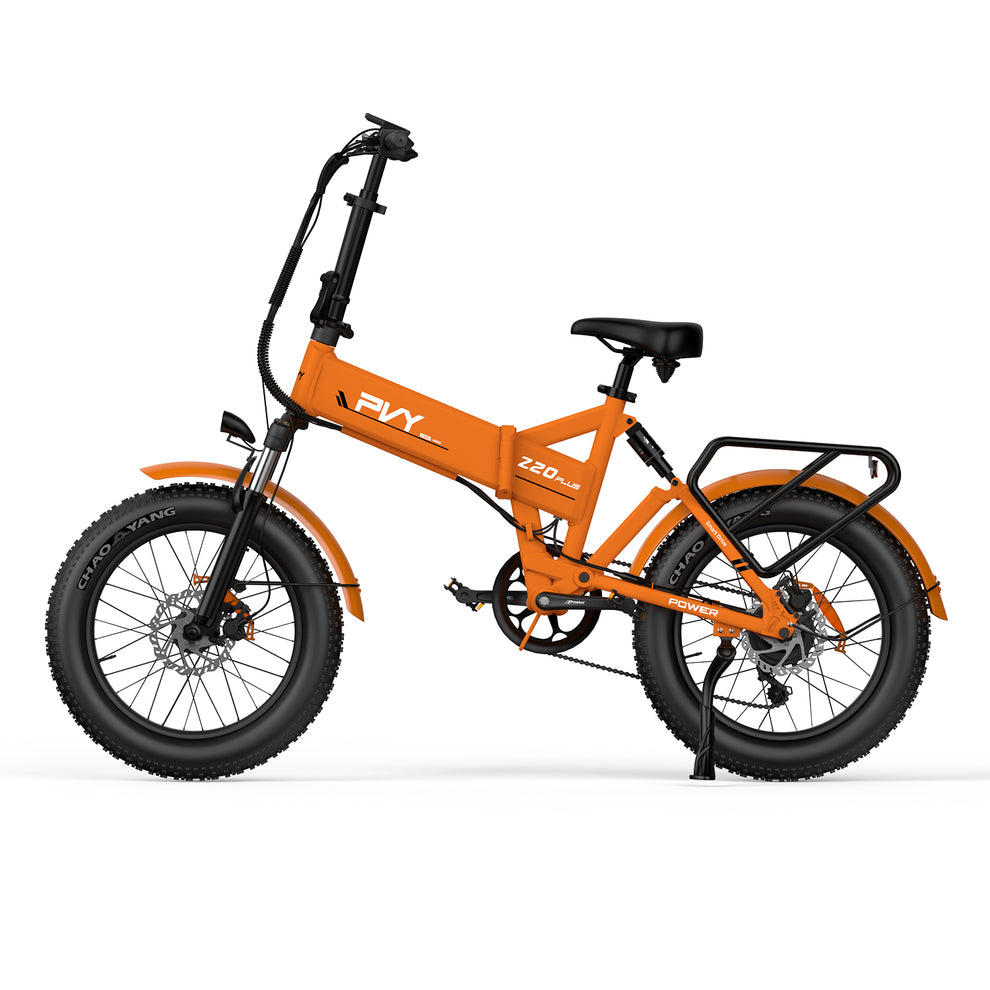

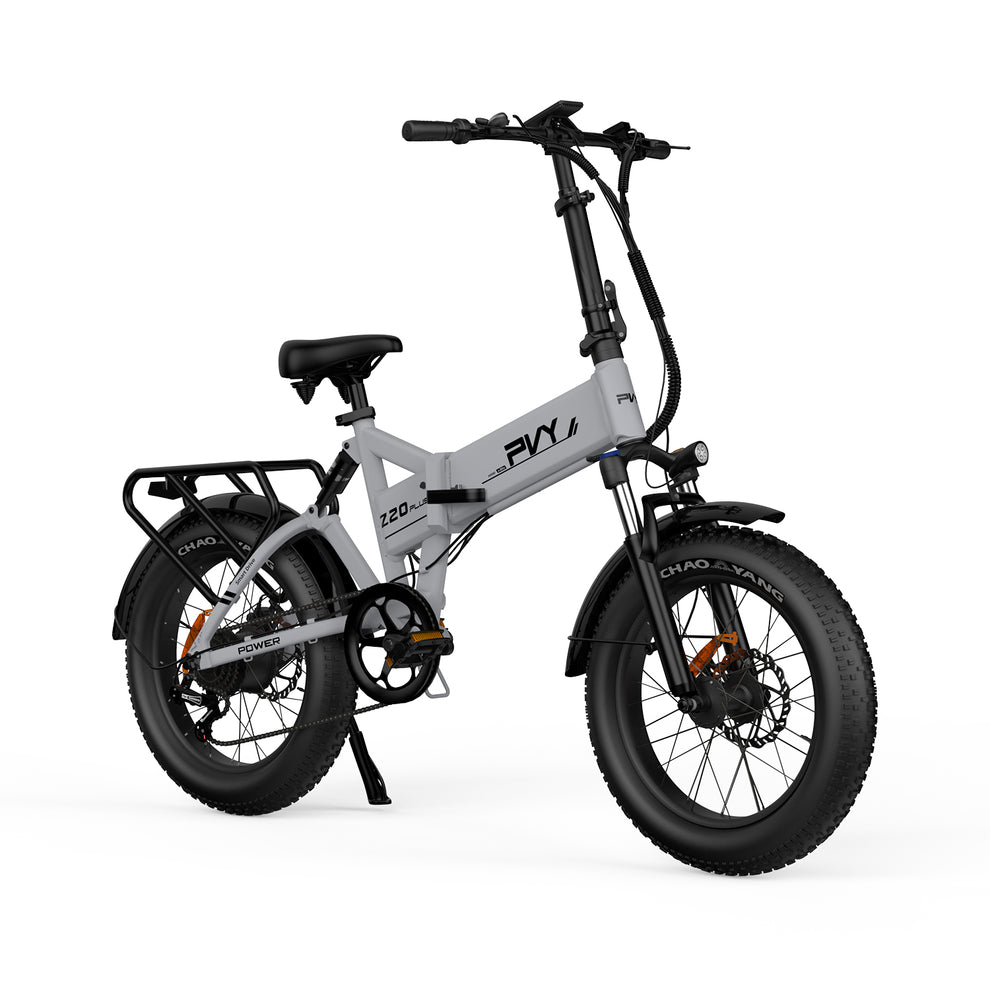

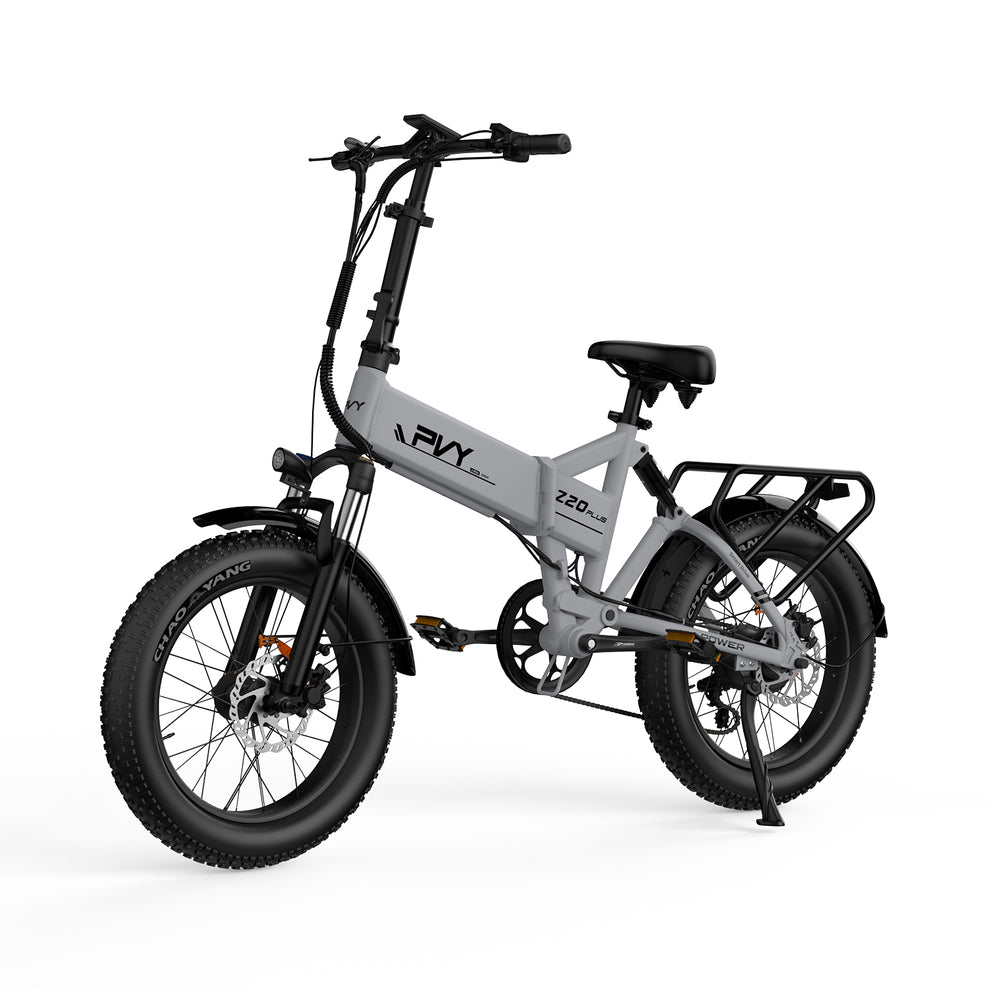

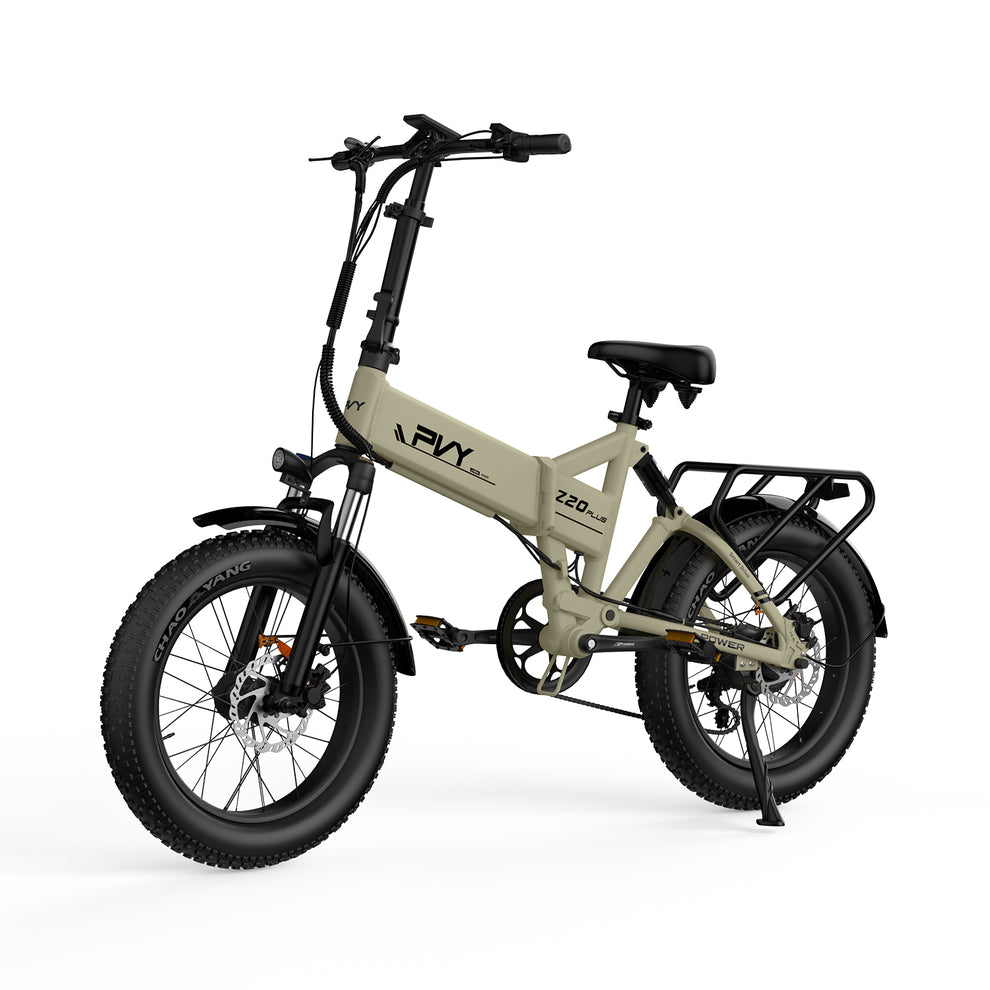

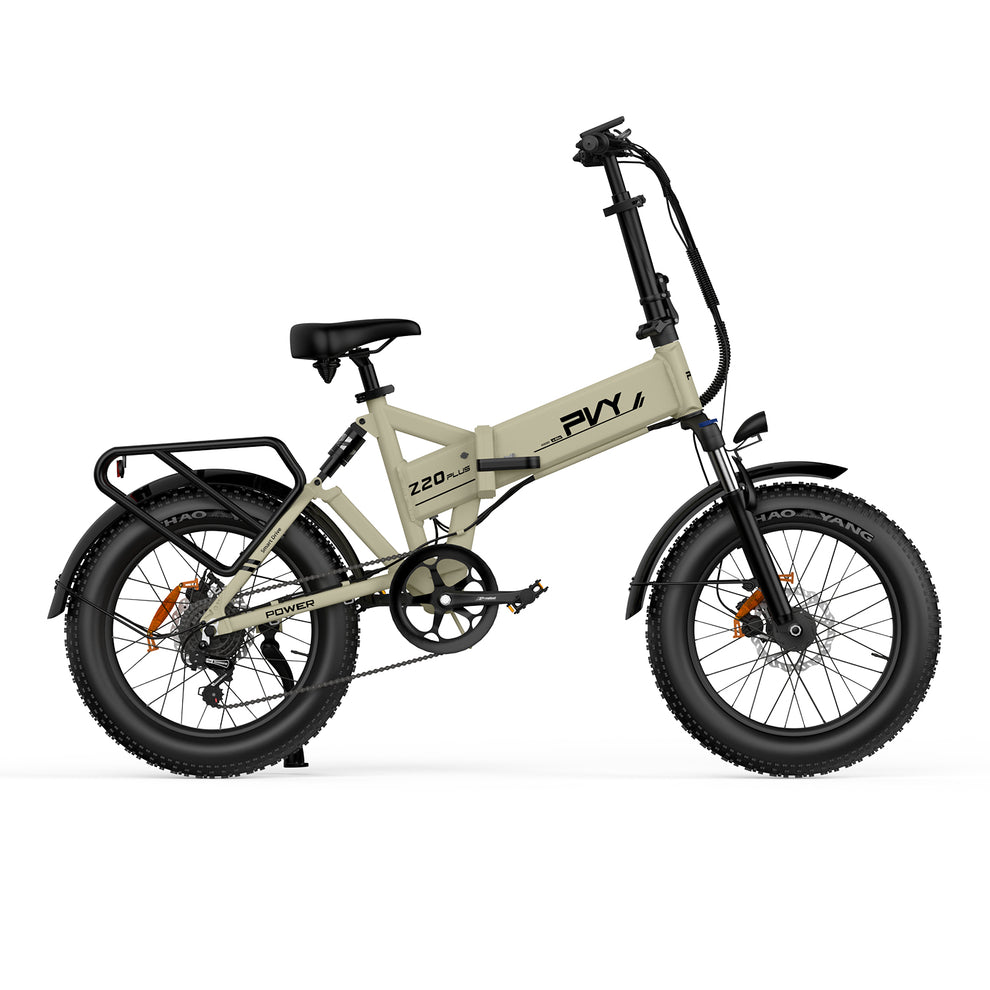

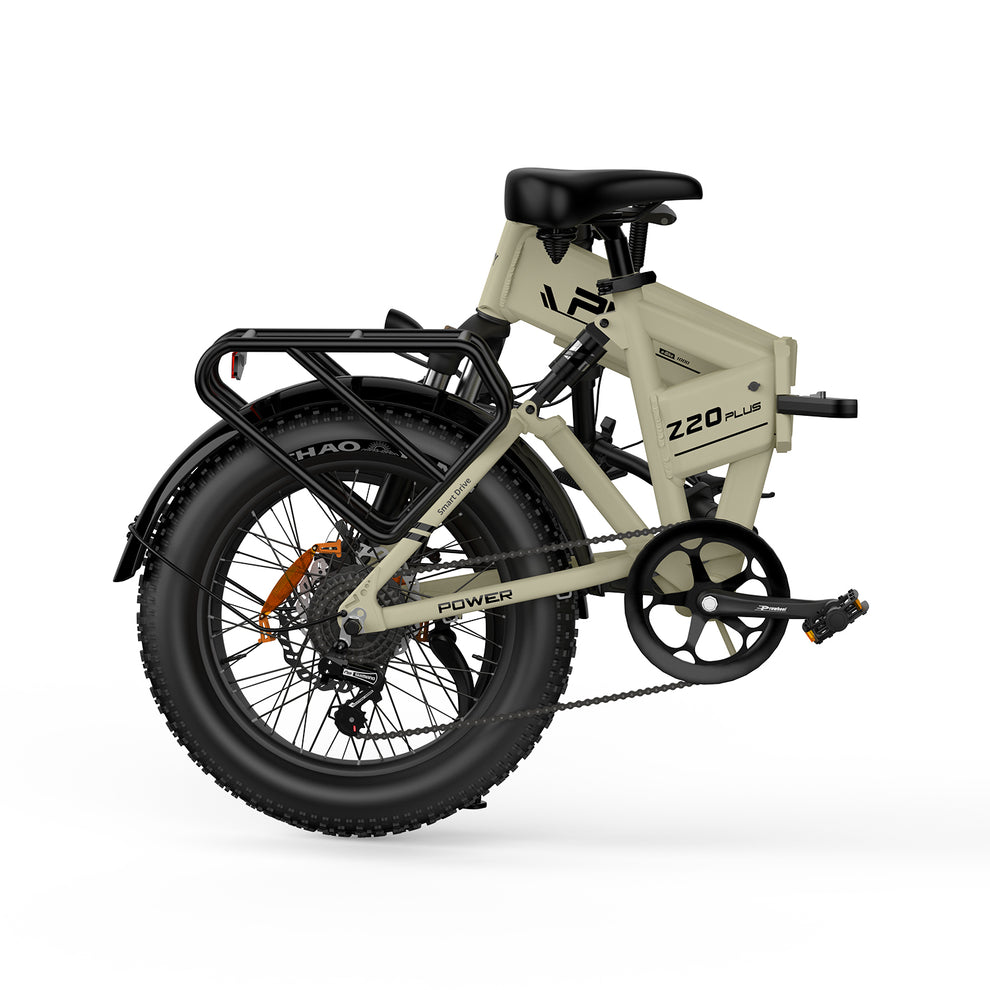

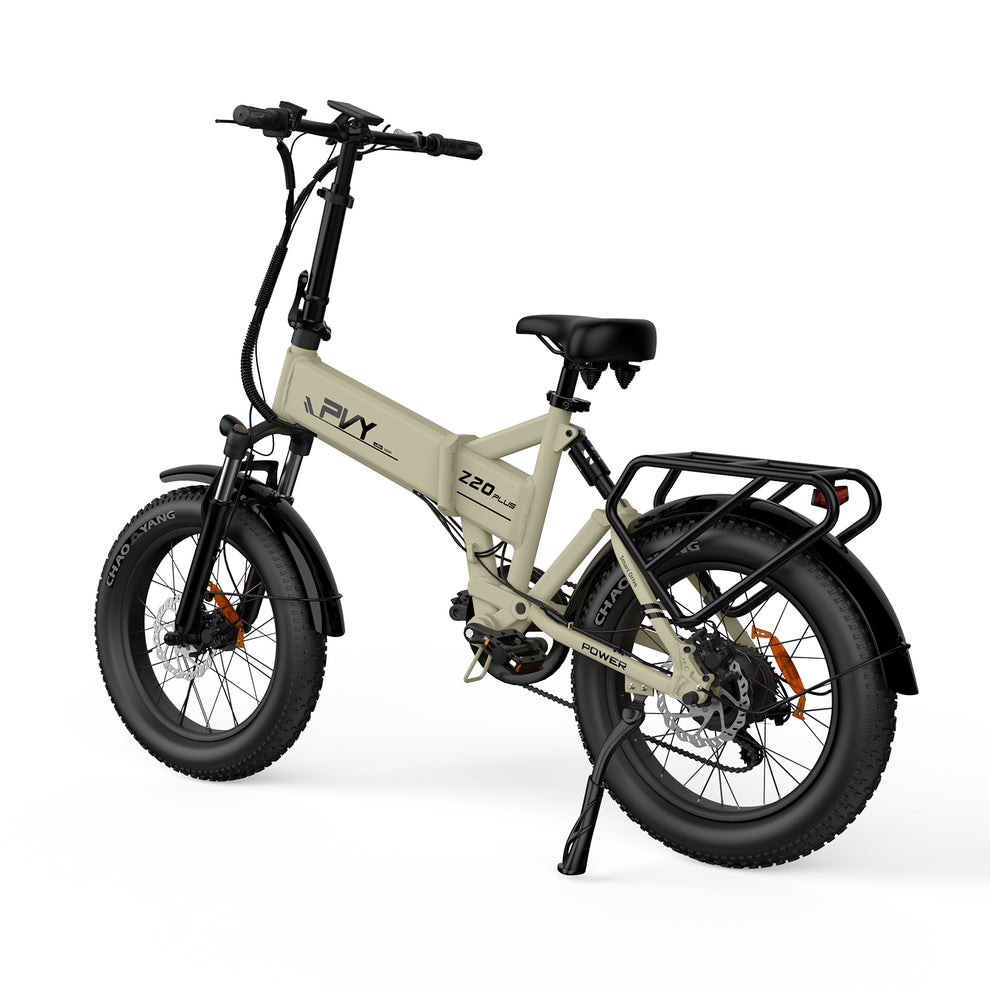

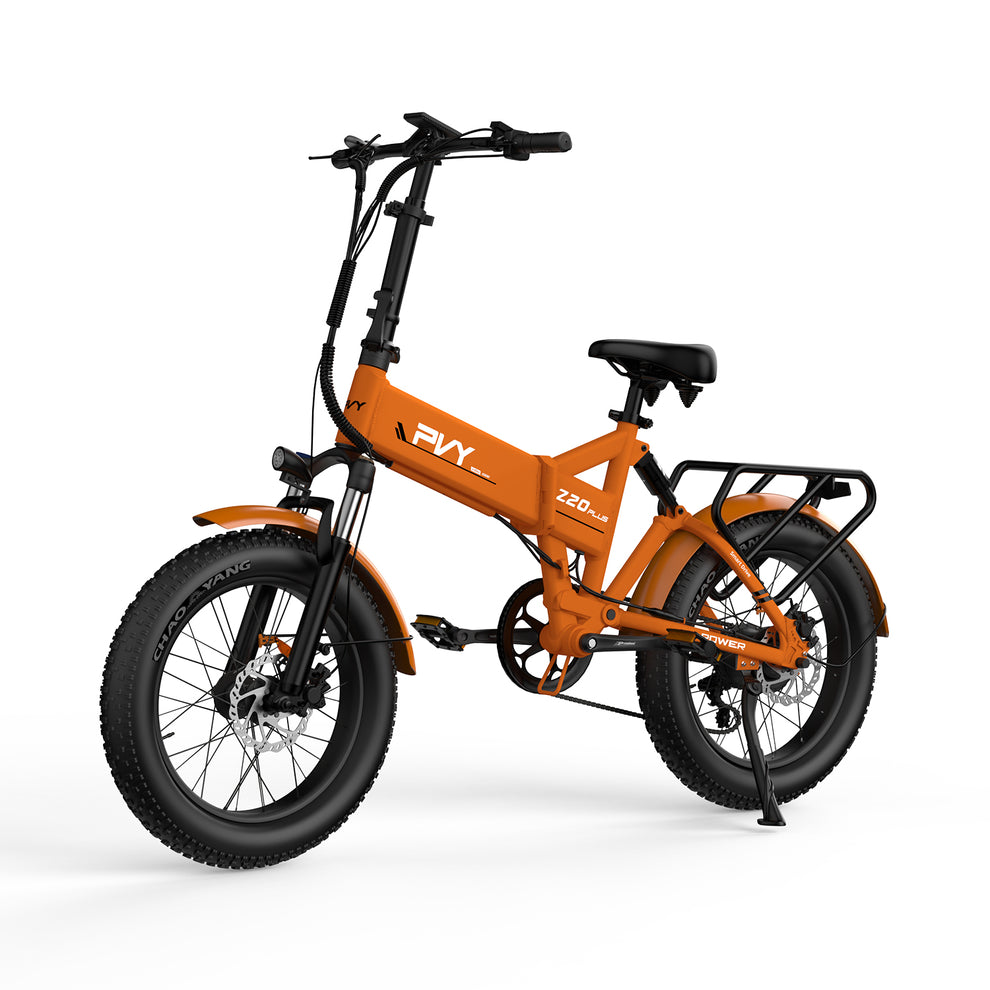

The PVY Z20 PLUS is a high-performance all-terrain folding e-bike engineered for riders who demand power, range, and durability. Equipped with a high-torque geared hub motor delivering up to 100N·m, it provides rapid acceleration and strong climbing capability across steep inclines and rugged terrain.
While road-legal configuration operates at 250W and 25km/h, the system can be unlocked up to 1000W (where permitted), delivering significantly enhanced off-road performance.
Its 48V 16.5Ah lithium battery offers extended range up to 120km per charge. The upgraded battery management technology improves lifespan by approximately 30%, making it suitable for daily commuting and longer weekend rides.
Designed with 20×4.0” fat tyres, hydraulic brakes, and a lockable suspension fork, the Z20 PLUS is built to handle urban streets, gravel paths, and light off-road environments with confidence.
Specification
🔹 Motor & Performance
-

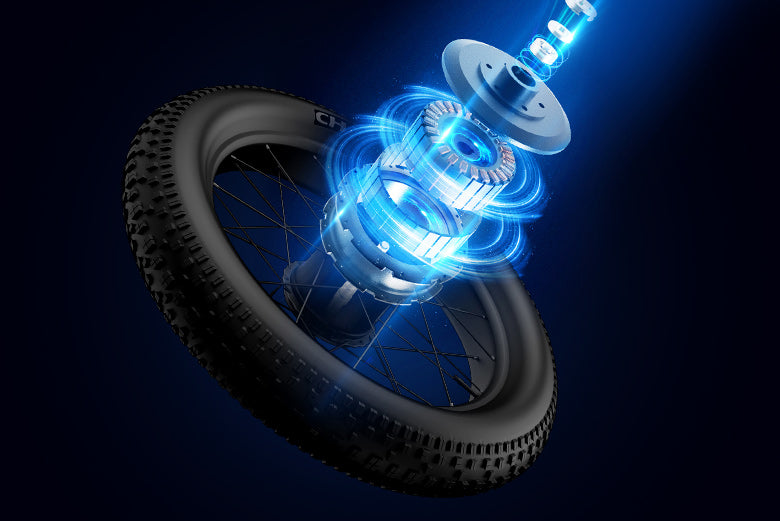

Motor Type: Hall Brushless Geared DC Motor
-
Rated Power: 250W (Road Legal)
-
Unlockable Power: Up to 1000W
-
Torque: 100N·m
-
Max Speed: 25 km/h
-
Climbing Ability: 15°–20°
-
Walk Mode: Up to 6 km/h
-
Throttle Mode: Yes
-
Zero Start: Supported
🔋 Battery & Range
-

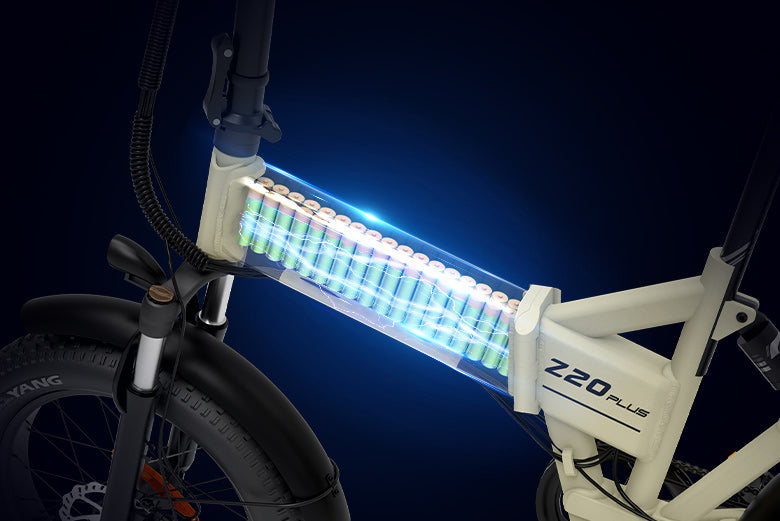

Battery: 48V 16.5Ah Lithium Battery
-
Maximum Range: Up to 120 km
-
Battery Technology: Extended lifespan (+30%)
-
Charging: Standard charger included
⚙️ Frame & Suspension
-
Frame Material: Upgraded 6061 Aluminum
-

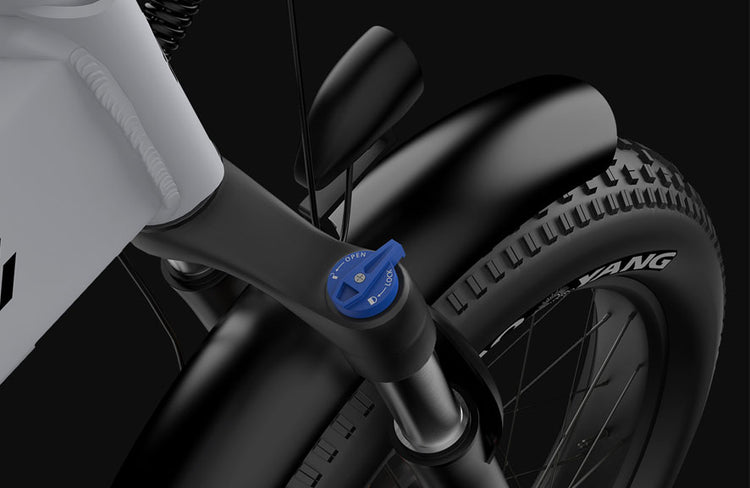

Front Fork: Lockable Shock Absorbing Fork
-
Mechanical Shock Length: 150 mm
🛑 Braking System
-

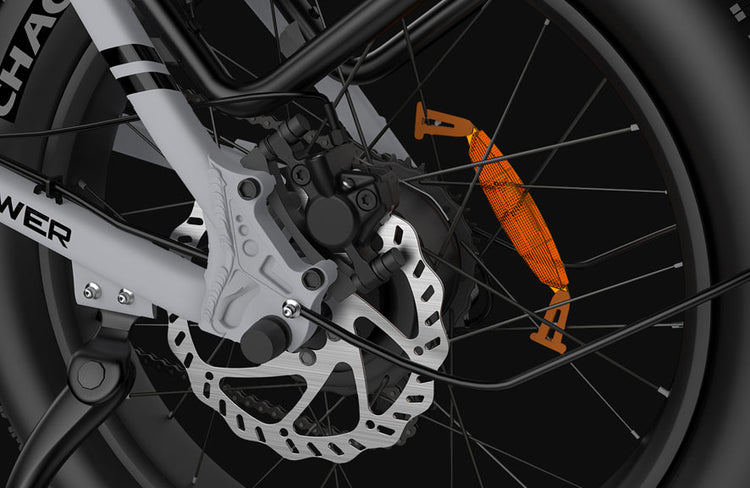

Brakes: Hydraulic Brake System
🚴 Drivetrain
-

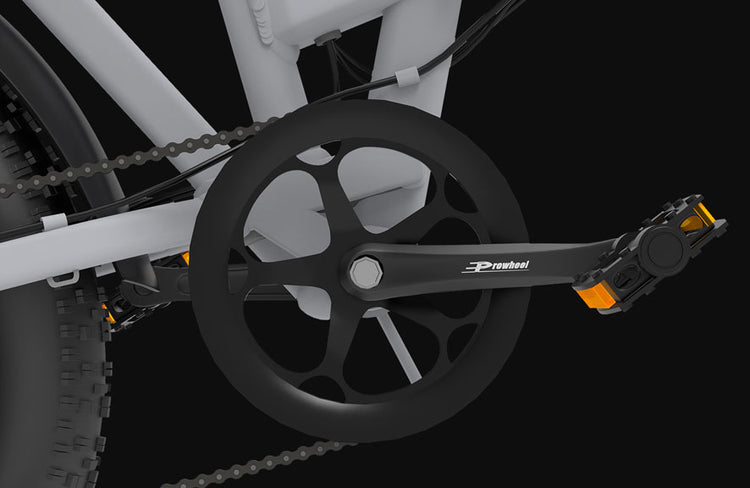

Chainring: Pro Wheel 52T
-
Crankset: 170 mm
-

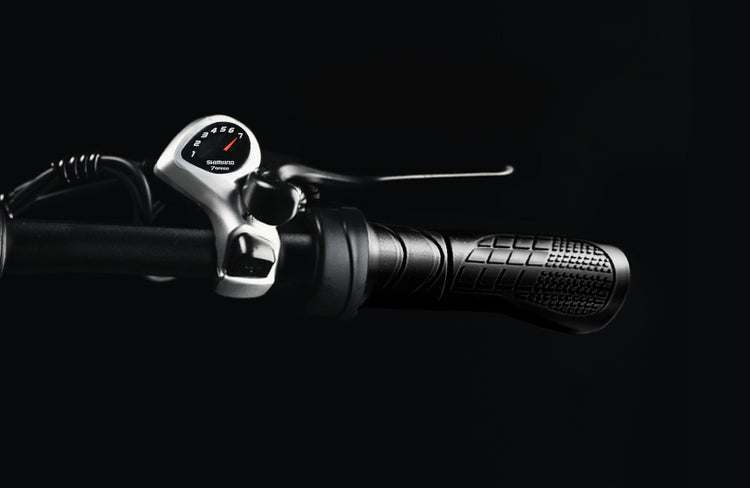

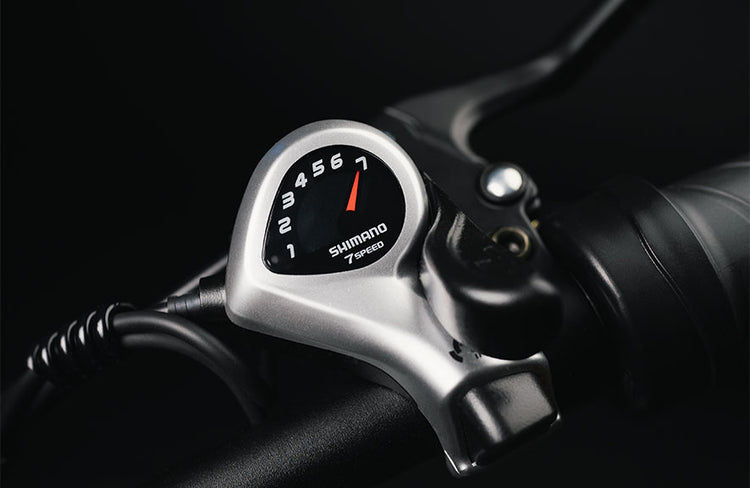

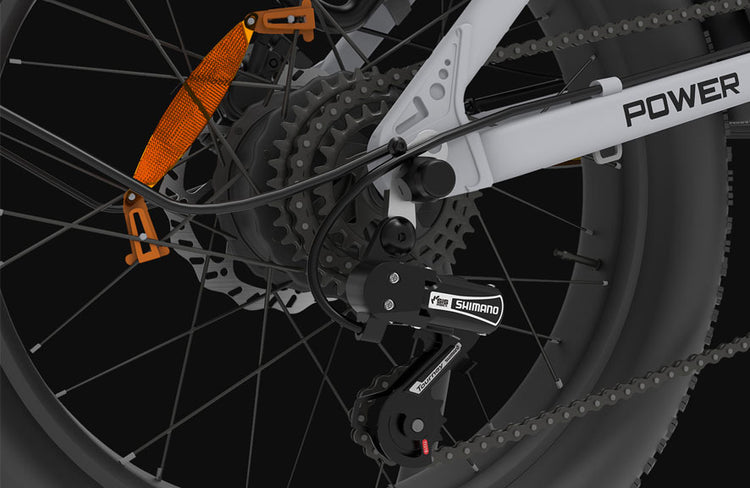

Derailleur: Shimano 7-Speed
-

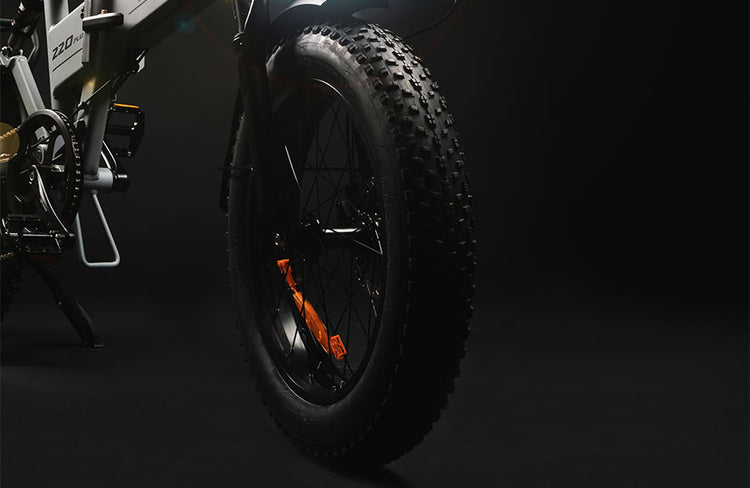

Tyre Size: 20 × 4.0 Inch Fat Tyres
💡 Electronics & Display
-

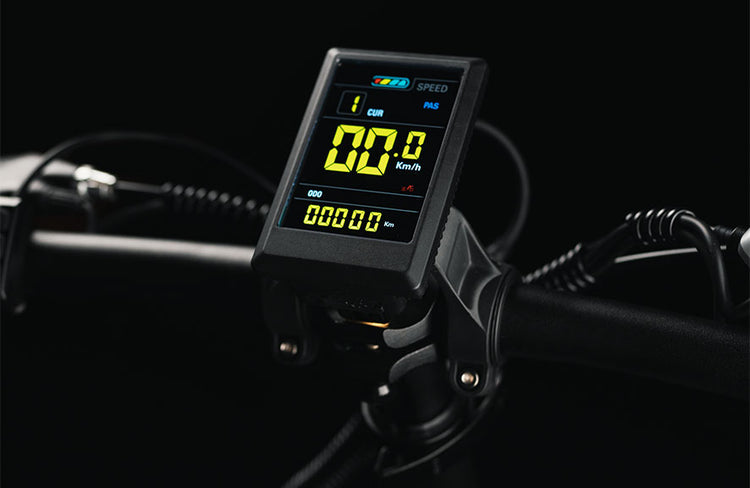

Display: Color LCD Display
-

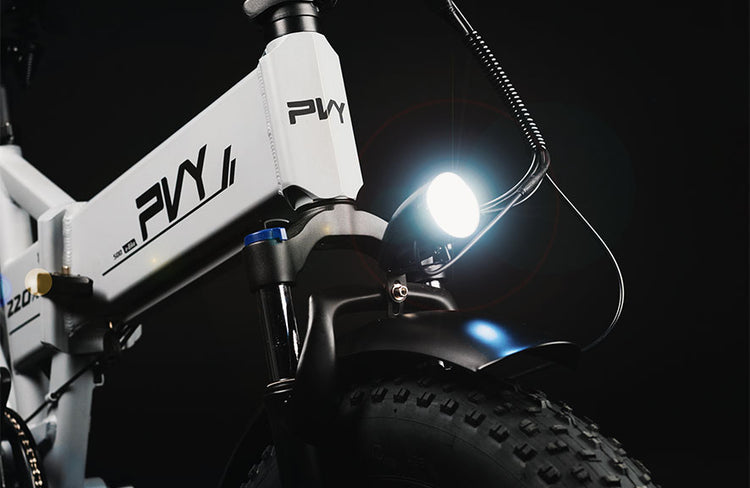

Headlight: 1200 Lumen (IPX5 Waterproof)
-
Tail Light: Integrated Brake Light
-
Pedal Assist: 0–5 Levels
-
Waterproof Rating: IPX5
-
Working Temperature: -10°C to 50°C
⚖️ Weight & Load
-
Net Weight: 29 kg (Including Battery)
-
Maximum Load Capacity: 150 kg
-

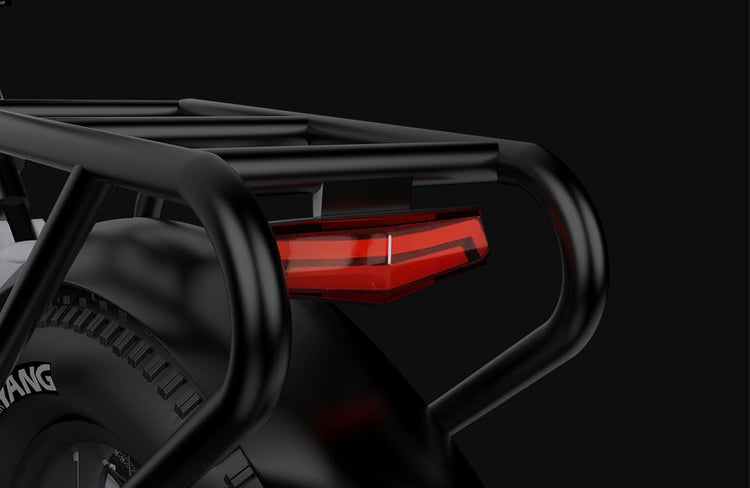

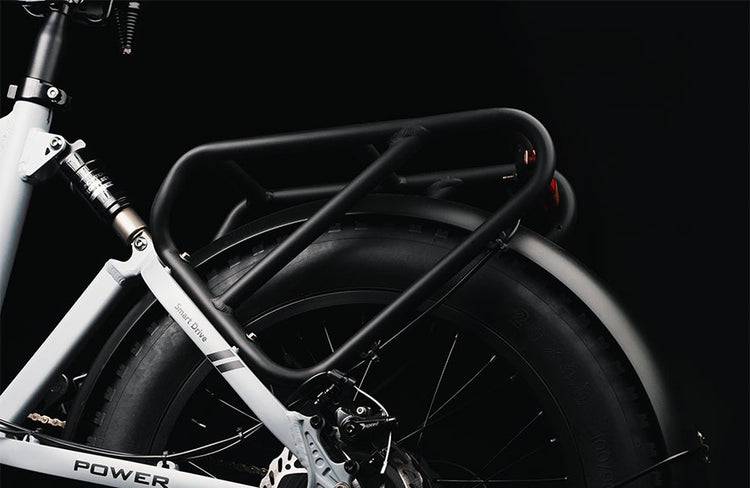

Rear Rack Load Capacity: 50 kg
📜 Certification
-
CE Certified
Size and Fit

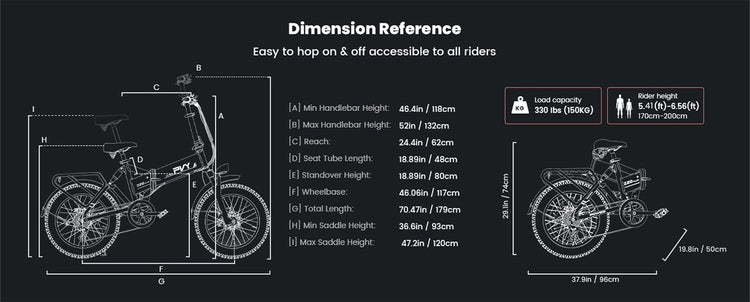

📏 Bike Dimensions (Approximate)
-
Wheel Size: 20 × 4.0 inch
-
Overall Length: ~1800–1900 mm (approximate)
-
Wheelbase: ~1150 mm
-
Handlebar Width: ~680–720 mm
-
Seat Height (Adjustable): ~880–1050 mm
🧍 Rider Fit Guidance
Recommended Rider Height
-
Approx. 165 cm – 200+ cm
(Adjustable seat and handlebar height allow for a wide range of rider sizes)
Weight Capacity
-
Up to 150 kg
🪑 Ergonomics & Comfort
-

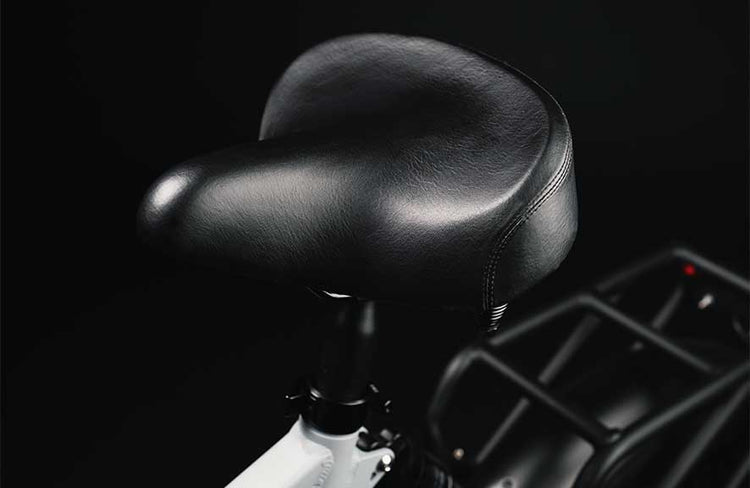

Adjustable Seat Height — accommodates taller or shorter riders
-
Lockable Shock Absorbing Fork — enhanced comfort over rough terrain
-
Fat Tyres (20×4.0”) — extra stability and traction on varied surfaces
🚴 Riding Position
-
Upright Commuter Posture: Comfortable for city riding and longer journeys
-
Wide Handlebars: Increased control and stable handling
-
Pedal Assist & Throttle: Adaptive assistance for smooth acceleration
