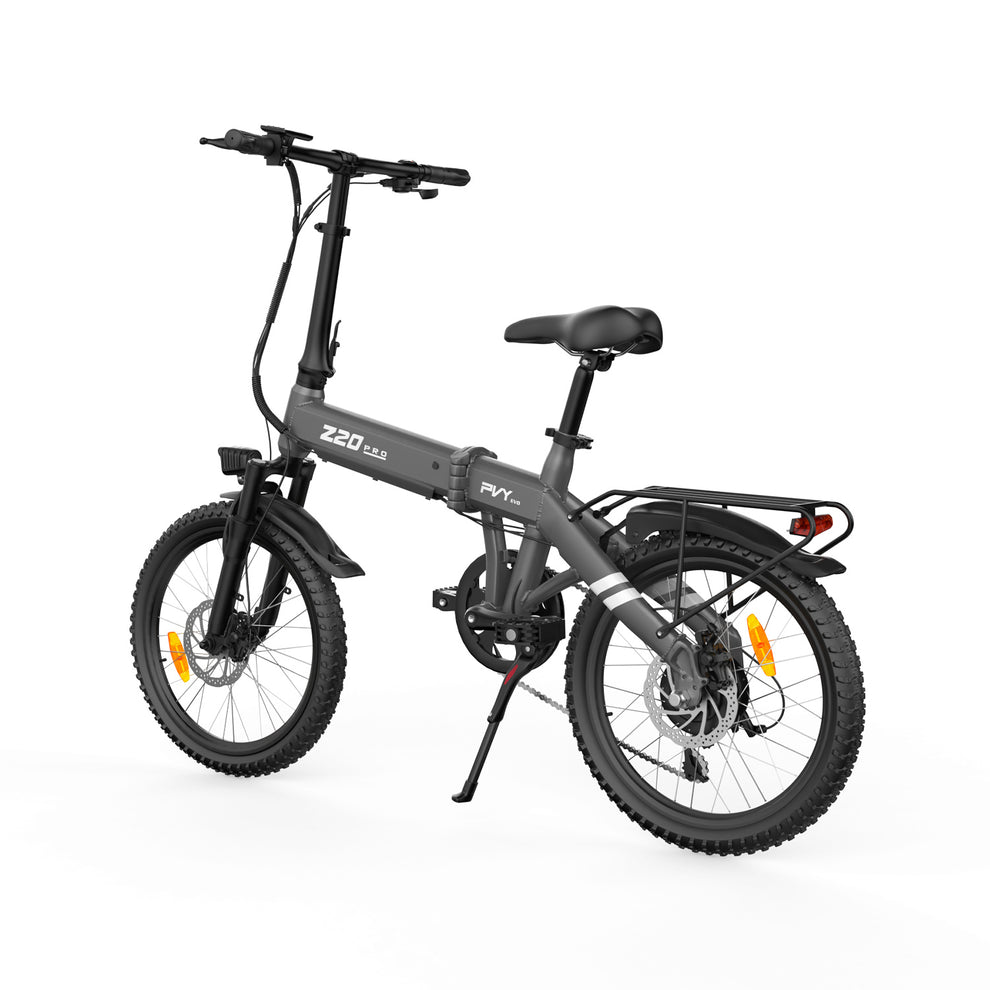

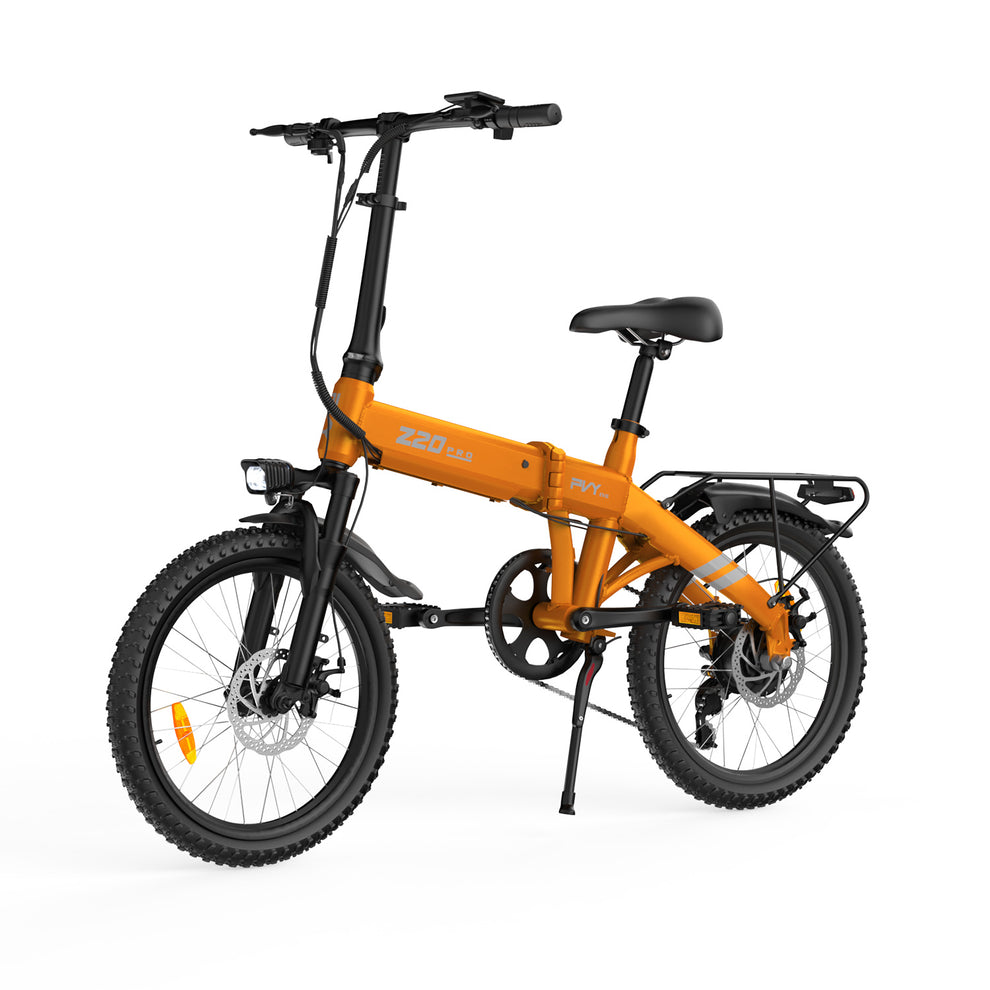

PVY Z20 PRO
Product details

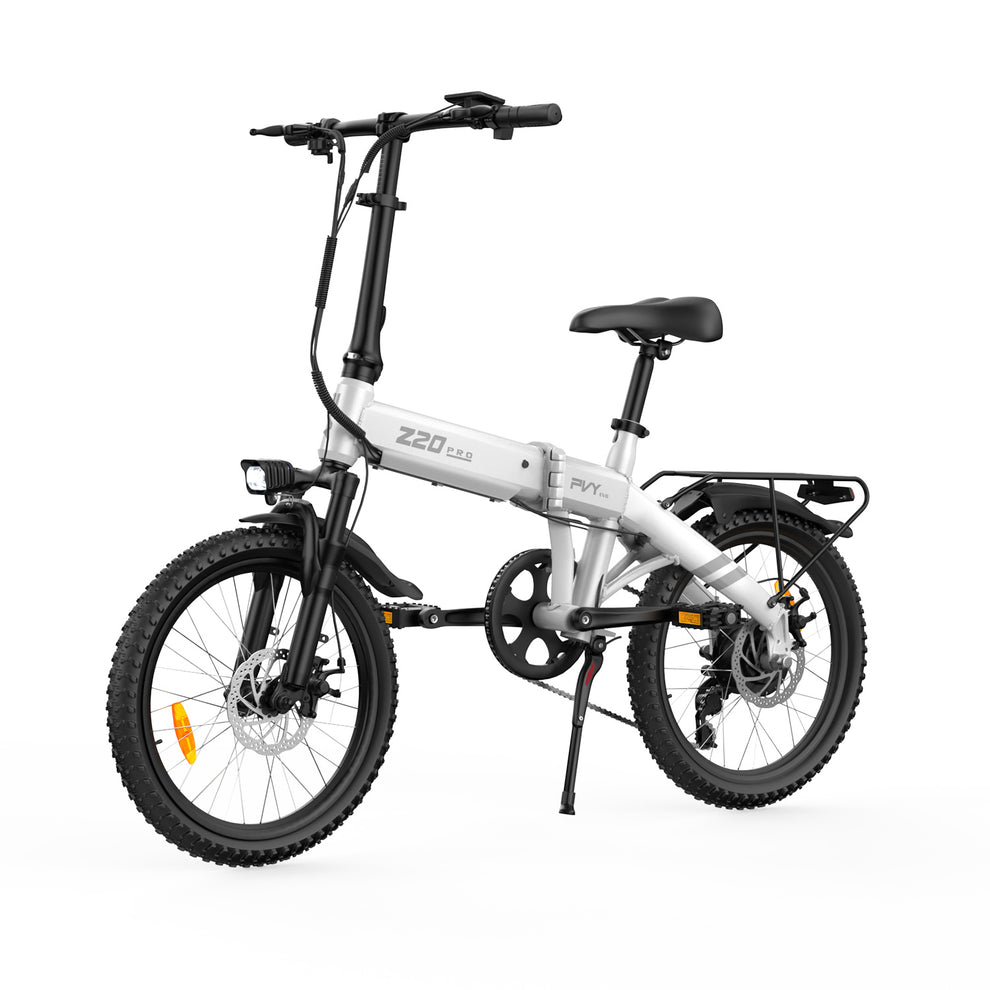

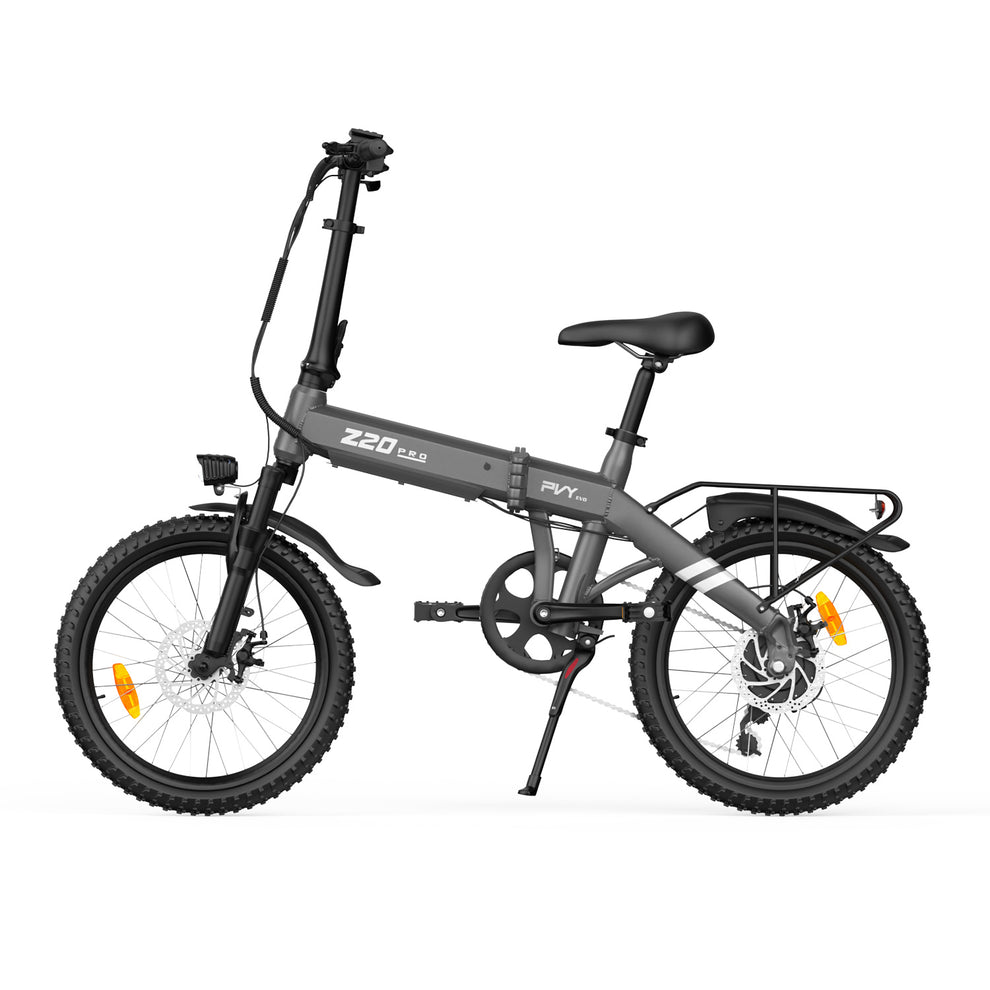

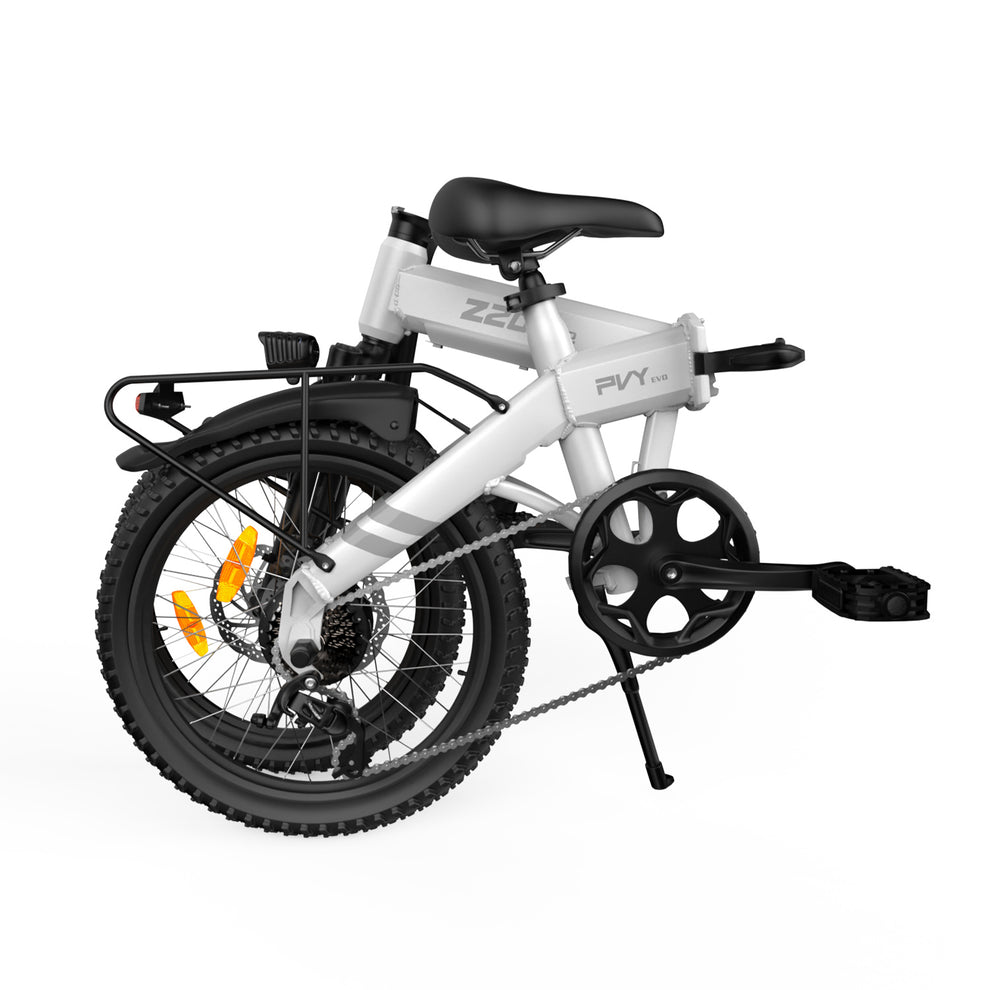

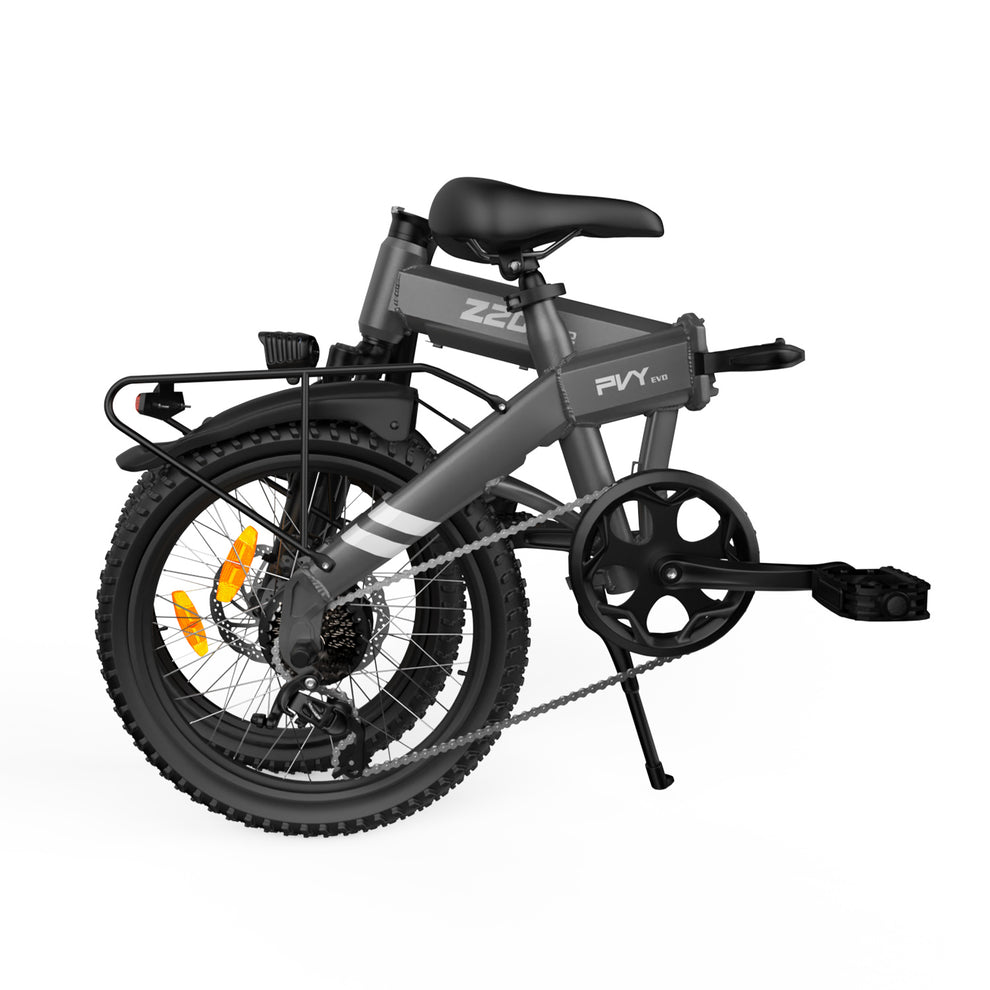

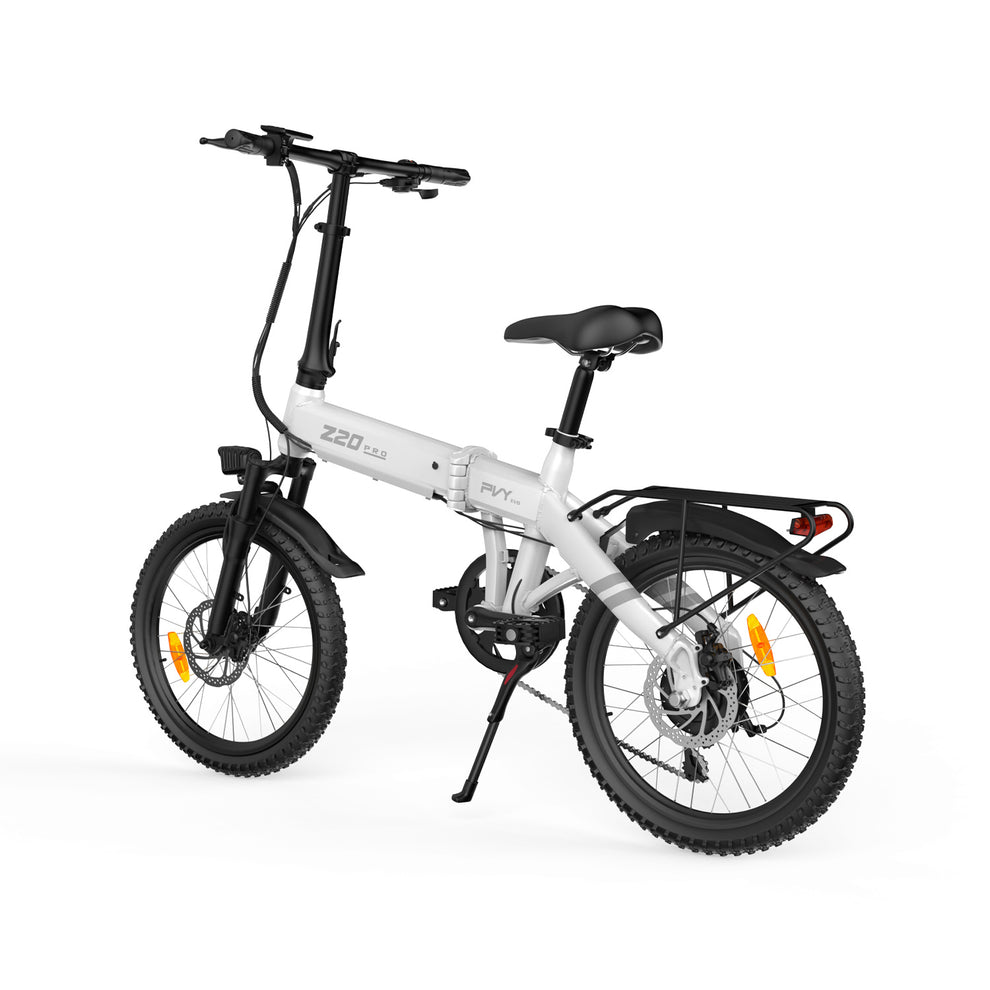

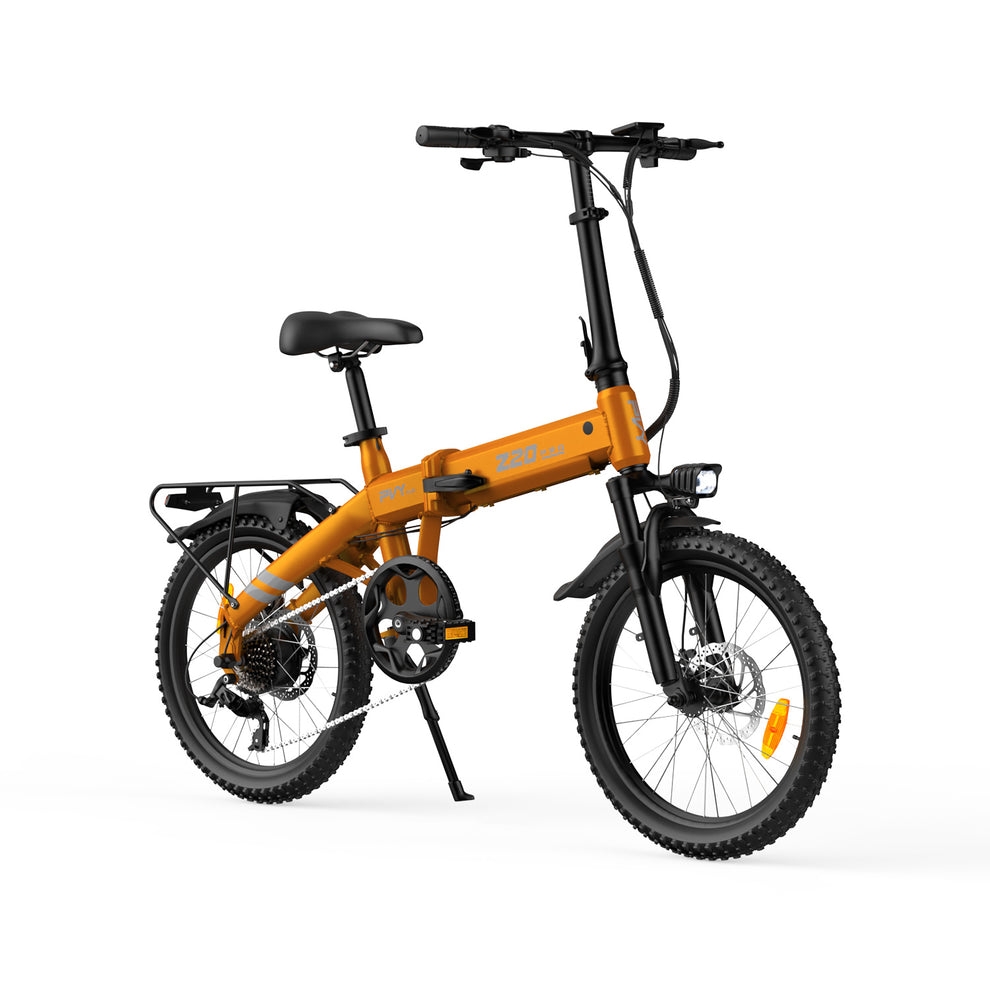

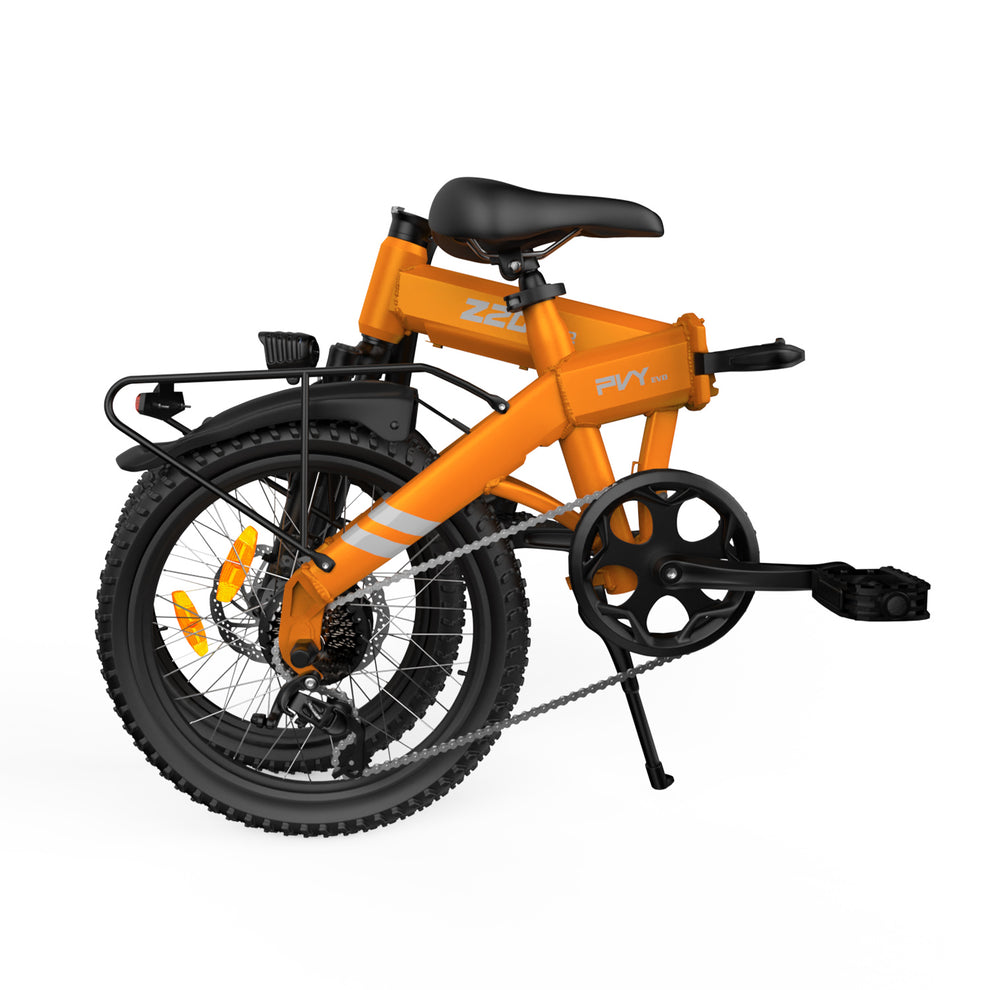

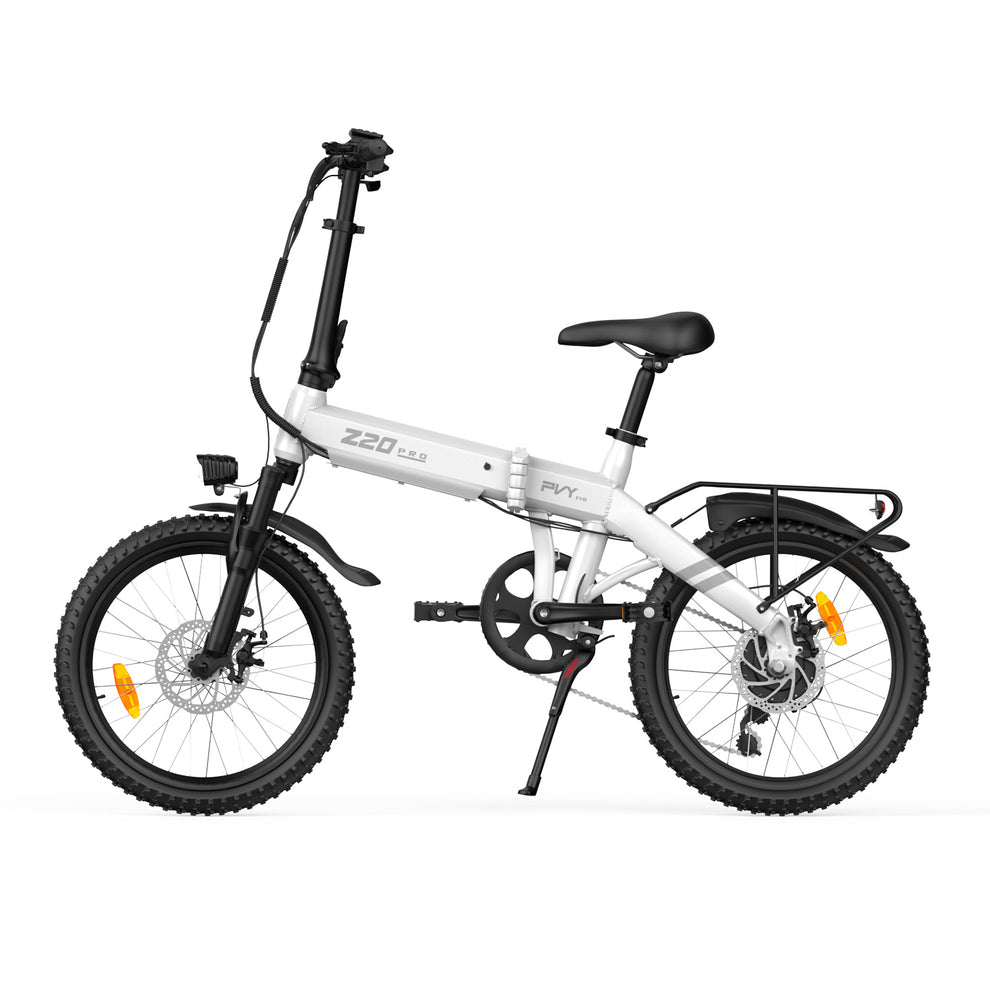

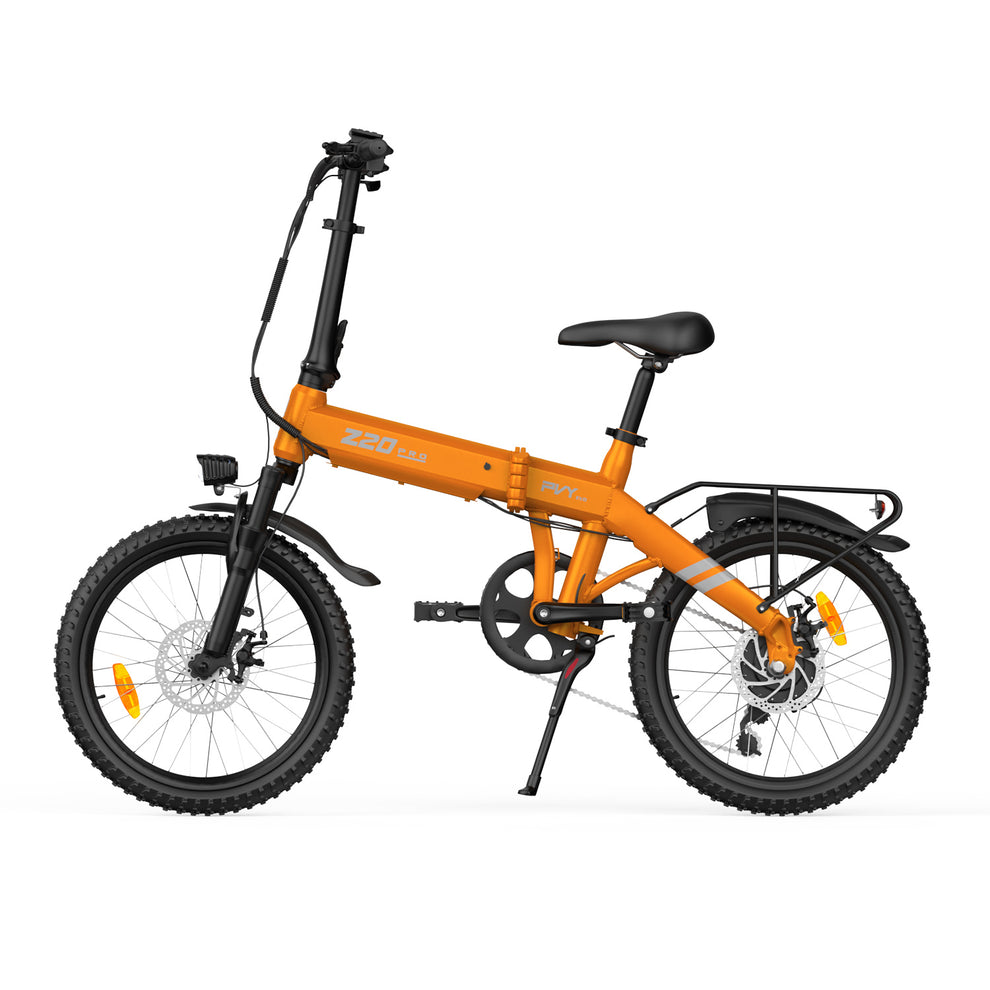

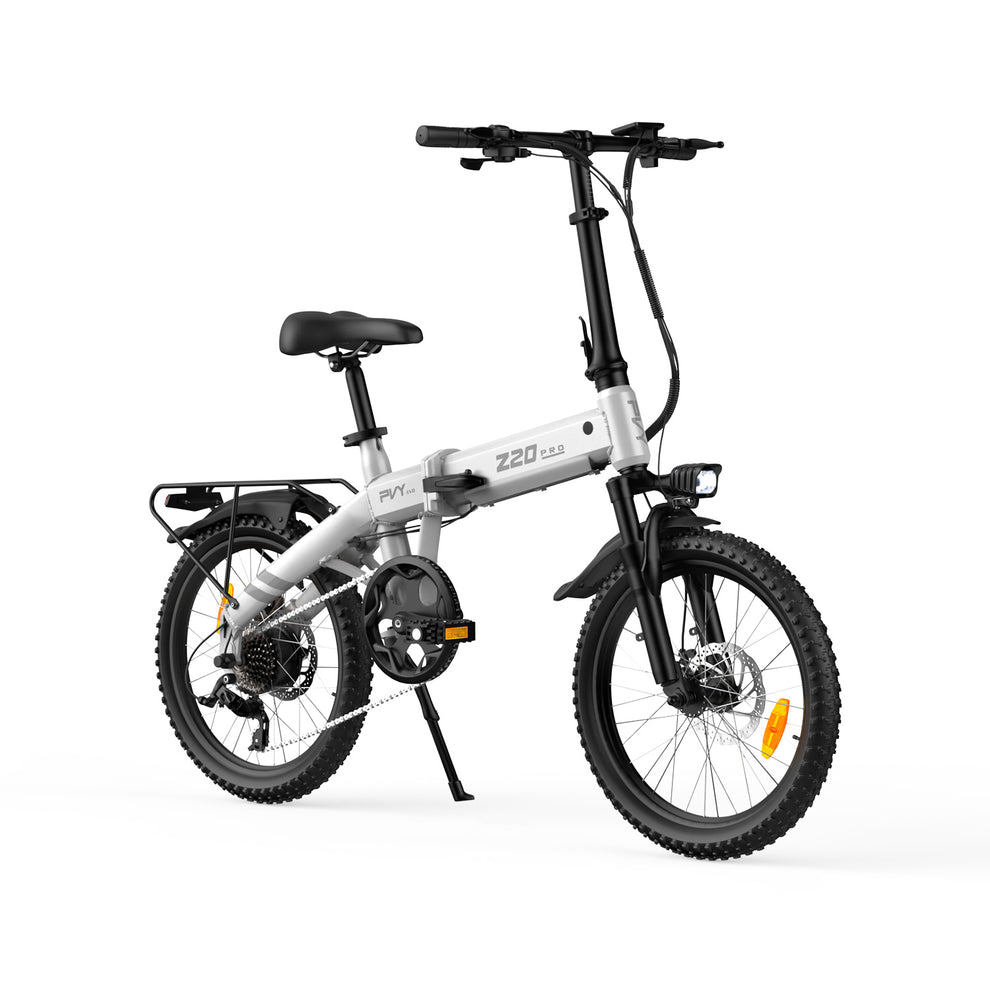

The PVY Z20 PRO is a high-performance folding electric bike engineered for efficient urban commuting. Powered by a 250W geared hub motor delivering 50N·m of torque, it ensures responsive acceleration and smooth hill climbing.
Designed to comply with European and UK e-bike regulations (25km/h limit), it allows legal and stress-free commuting. For private-use applications where regulations permit, the motor can be unlocked to deliver up to 500W of peak power.

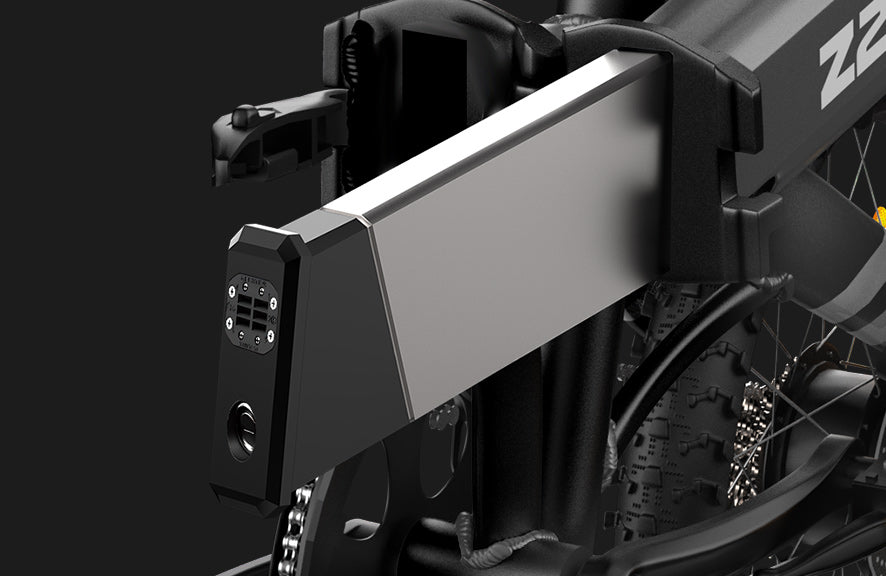

Equipped with a detachable 36V 10.4Ah lithium battery, the bike offers dependable energy output, waterproof protection (IPX5), and flame-retardant safety features. The removable design allows convenient off-bike charging, reducing downtime and increasing flexibility.
With a lightweight 6061 aluminium frame, suspension fork, 20-inch tyres, and integrated lighting system, the PVY Z20 PRO is purpose-built for modern city mobility.
Specification
🔹 General
-
Model: PVY Z20 PRO
-
Certification: CE
-
Max Speed: 25 km/h
-
Max Range: Up to 80 km
-
Climbing Ability: 10°
-
Working Temperature: -10°C to 50°C
-
Waterproof Rating: IPX5
⚡ Motor & Performance
-

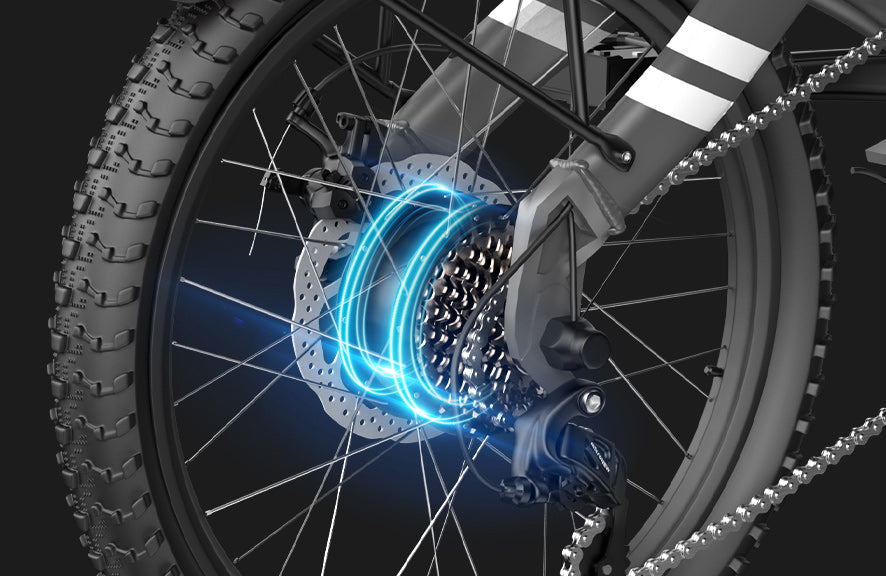

Motor Type: Hall Brushless Geared DC Motor
-
Rated Power: 250W
-
Unlockable Power: Up to 500W
-
Torque: 50 N·m
-
Throttle Mode: Yes
-
Pedal Assist: 0–3 Levels
🔋 Battery & Charging
-
Battery: 36V 10.4Ah Lithium-Ion
-
Charger: 36V 2.0A
-
Battery Type: Removable
-
Range: Up to 80 km
🛠 Frameset
-

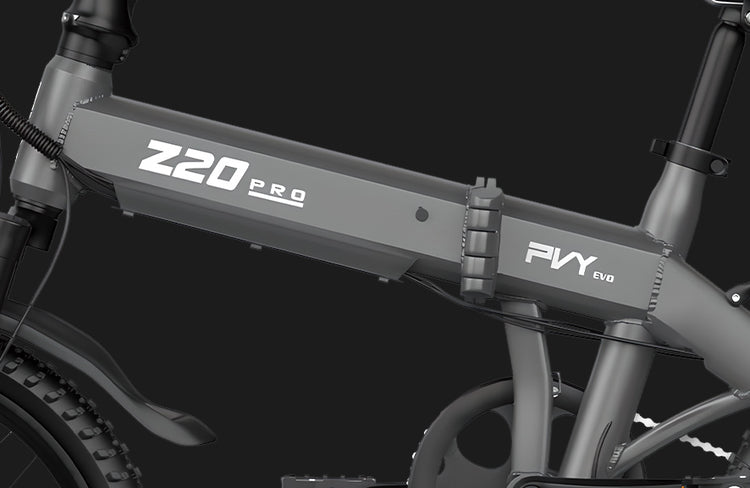

Frame: Upgraded 6061 Aluminum Alloy
-

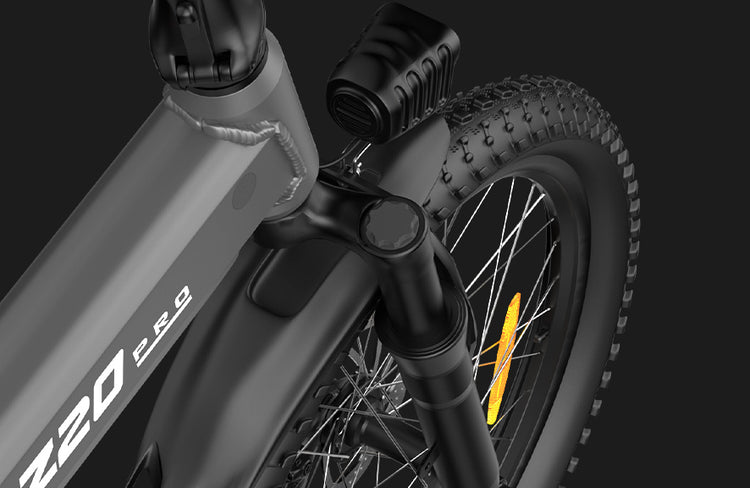

Fork: Shock Absorption Fork
🛑 Brake System
-

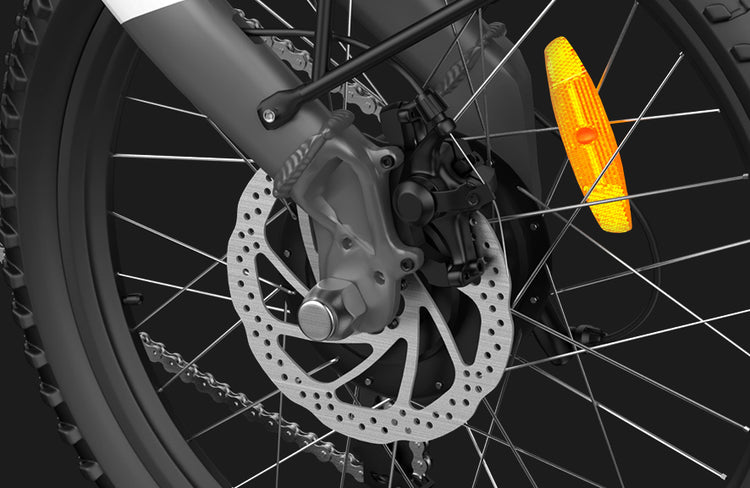

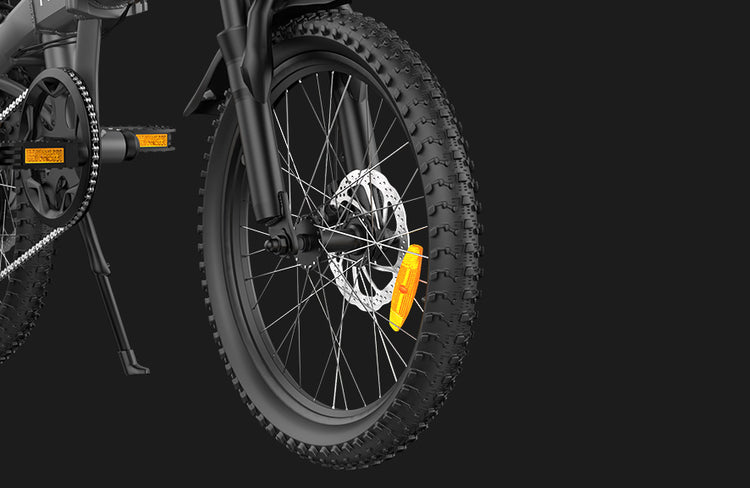

Brakes: 160 mm Mechanical Disc Brakes
-

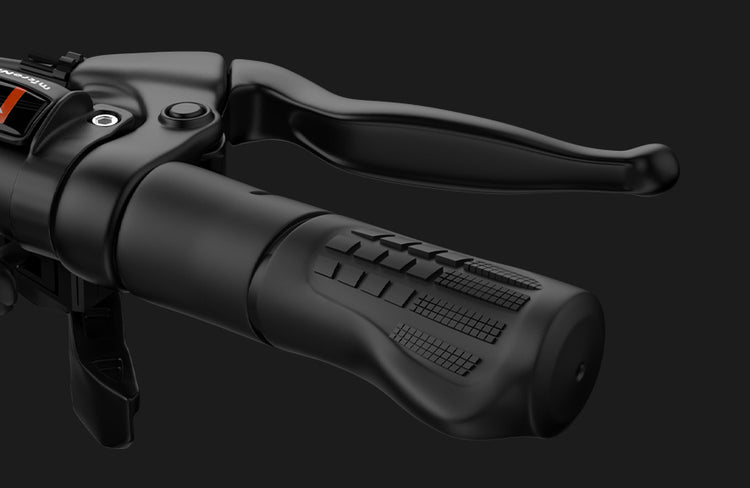

Brake Levers: Aluminum Alloy
🚴 Drivetrain
-

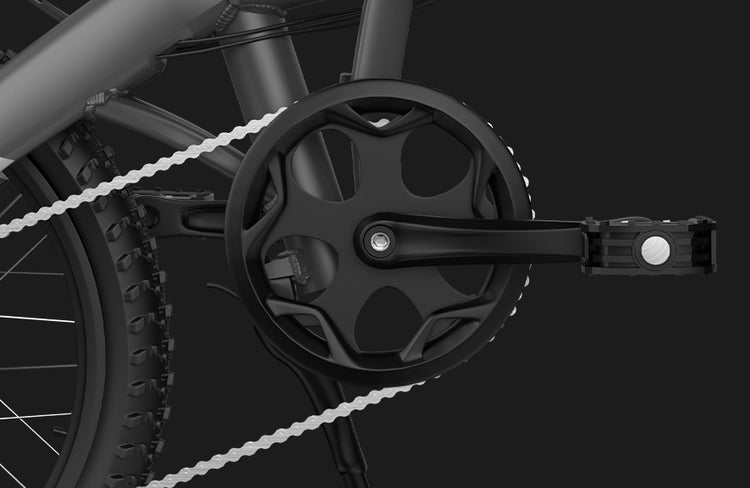

Chainring: Pro Wheel 48T
-
Crankset: 170 mm
-

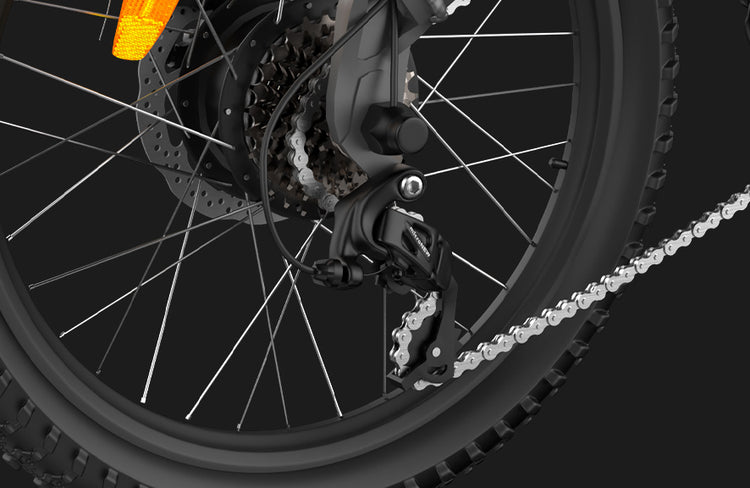

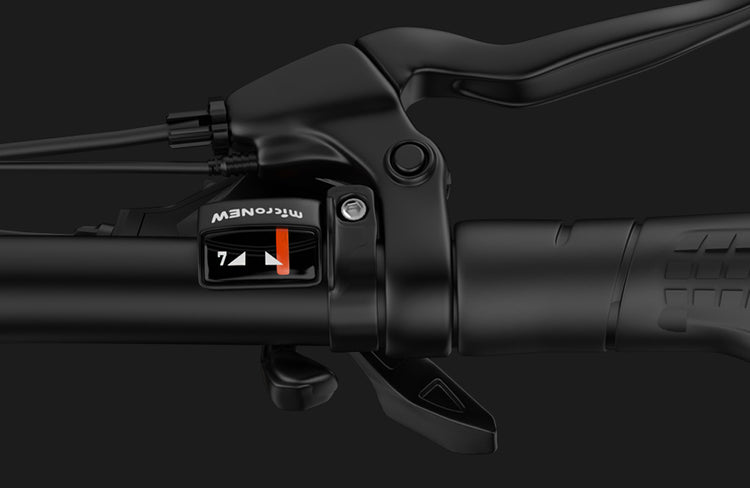

Rear Derailleur: Shimano 6-Speed
-
Tyre Size: 20 × 2.3 Inch
💡 Electronics & Lighting
-

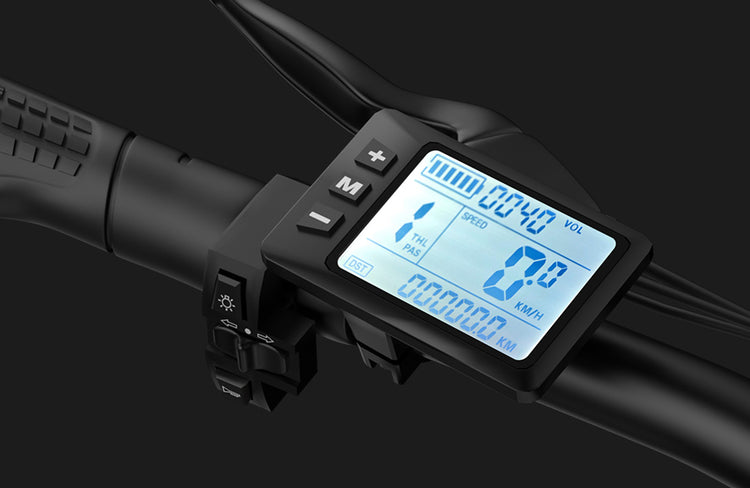

Display: HD LCD Display
-

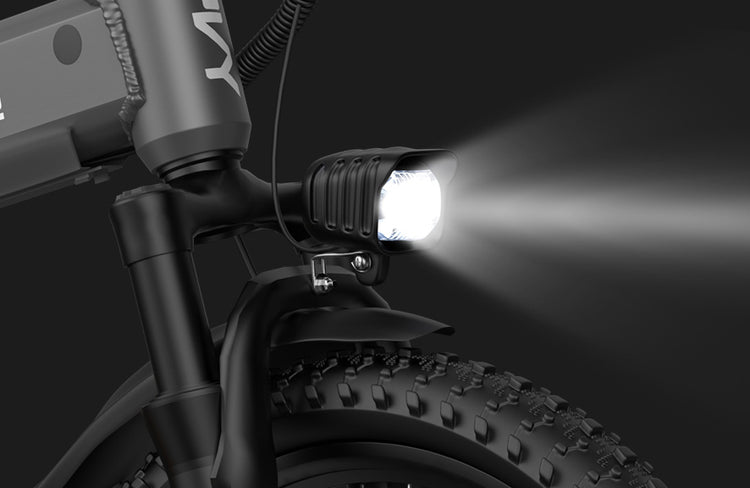

Headlight: 1200 Lumen (IPX5 Waterproof)
-

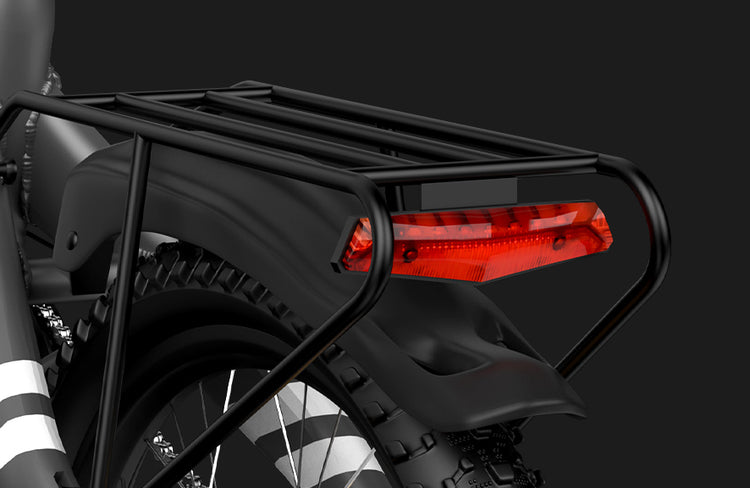

Turn Indicators: Integrated Taillight with Brake Light
⚖️ Weight & Load
-
Net Weight: 22 kg (Including Battery)
-
Maximum Load Capacity: 120 kg
-

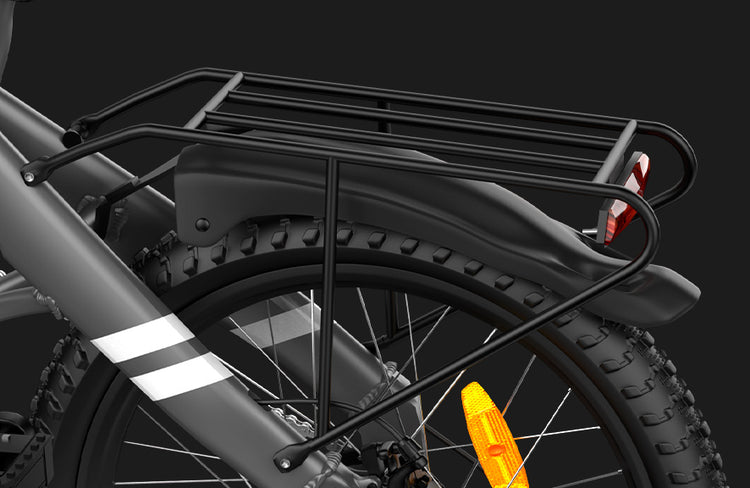

Rear Rack Load Capacity: 25 kg
Size and Fit
Bike Dimensions (Approximate)
-
Wheel Size: 20 × 2.3 inch
-
Overall Length: ~1700–1800 mm (varies slightly by production batch)
-
Wheelbase: ~1050 mm
-
Handlebar Width: ~630–680 mm
-
Seat Height (Adjustable): ~850–1000 mm
🧍 Rider Fit Guidance
-
Recommended Rider Height: ~160 cm – 195 cm
-
Maximum Rider Weight: Up to 120 kg
-
Terrain Suitability: Urban roads, paved paths, light commuting routes
-
Riding Position: Upright, comfortable commuter stance
🪑 Ergonomics & Comfort
-
Adjustable Seat Height — accommodates a wide range of adult sizes
-
Shock Absorbing Fork — smoothens bumps for added comfort
-
20 inch Tires — stable and maneuverable for city riding
